High Strength Steel Feed Line
2015
2922
Like New
Specifications |
|||
|---|---|---|---|
| Coil Weight | 6000 pounds |
||
| Coil Width | 12 inches |
||
| Coil Thickness | .180 inches |
||
|
Coe Press Equipment High Strength Steel Coil Feed Line 85,000 Material Yield - Max: 0.250" thick @ 3.00" wide
85,000 Material Yield - Min: 0.120" thick @ 6.00" wide
85,000 Material Yield - Max: 0.187" thick @ 8.00" wide
Consisting of: Performance Specifications
Feed Length / SPM at 180° / SPM at 240°
12" 44 55
24" 32 41

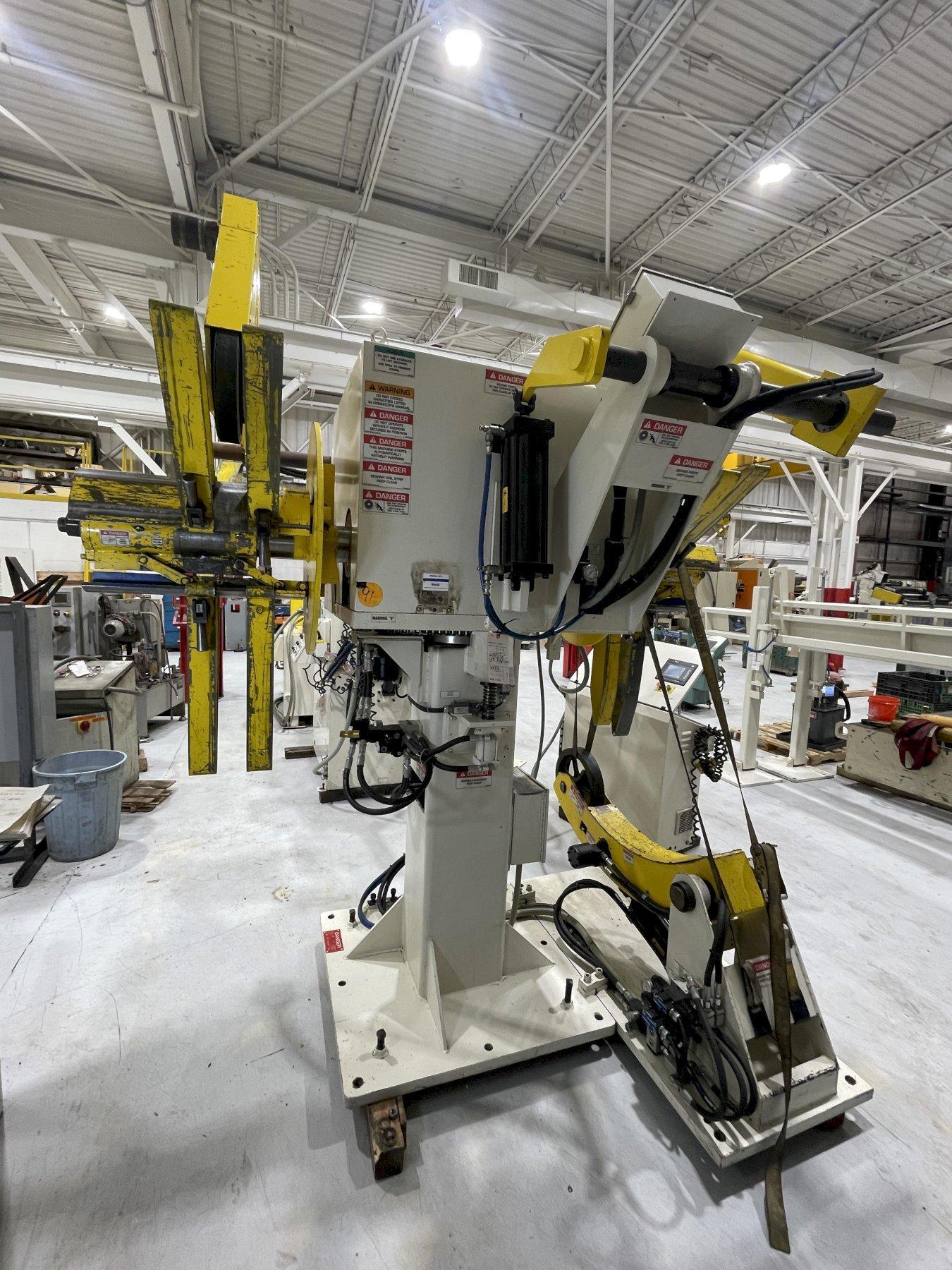

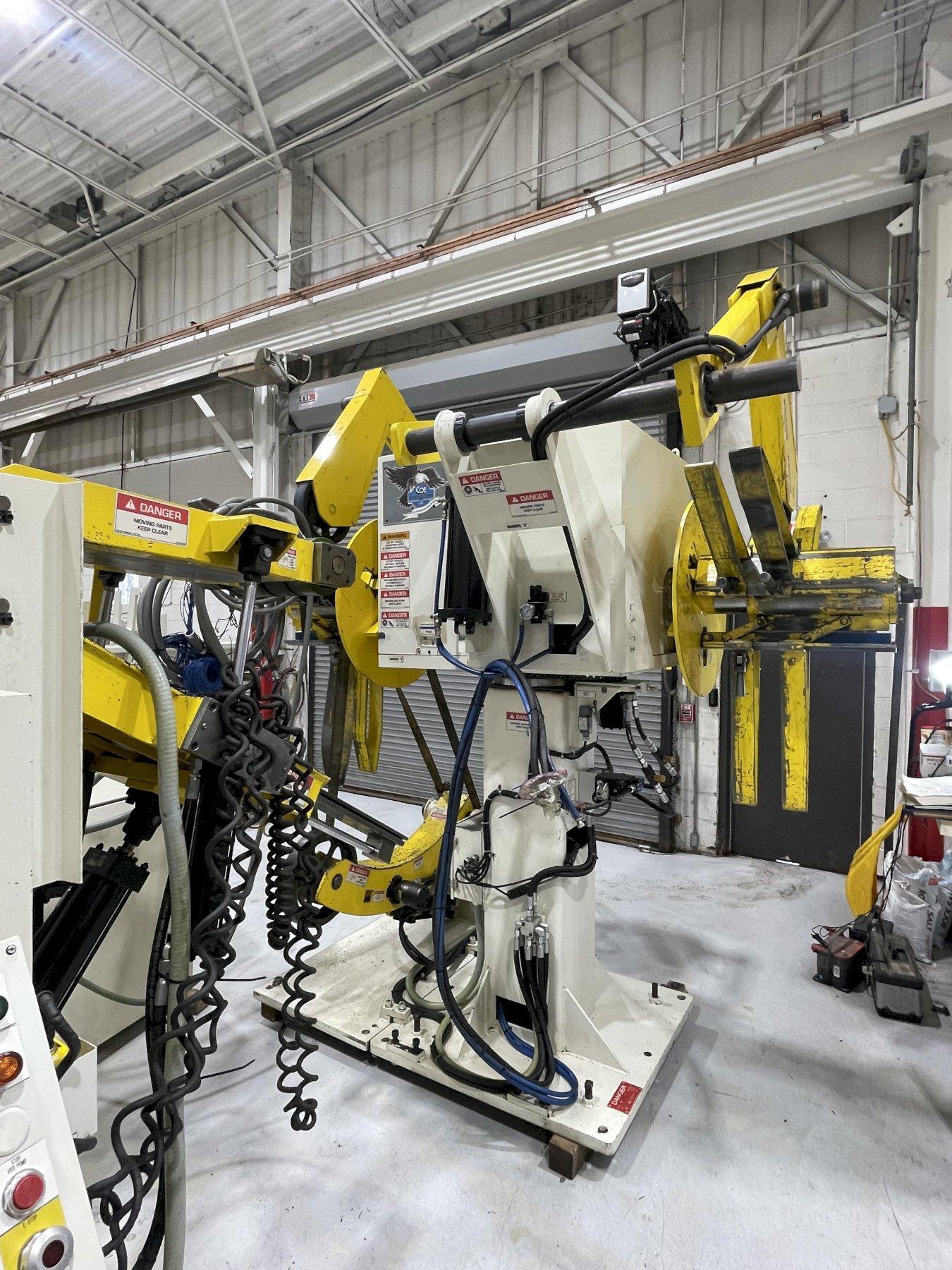

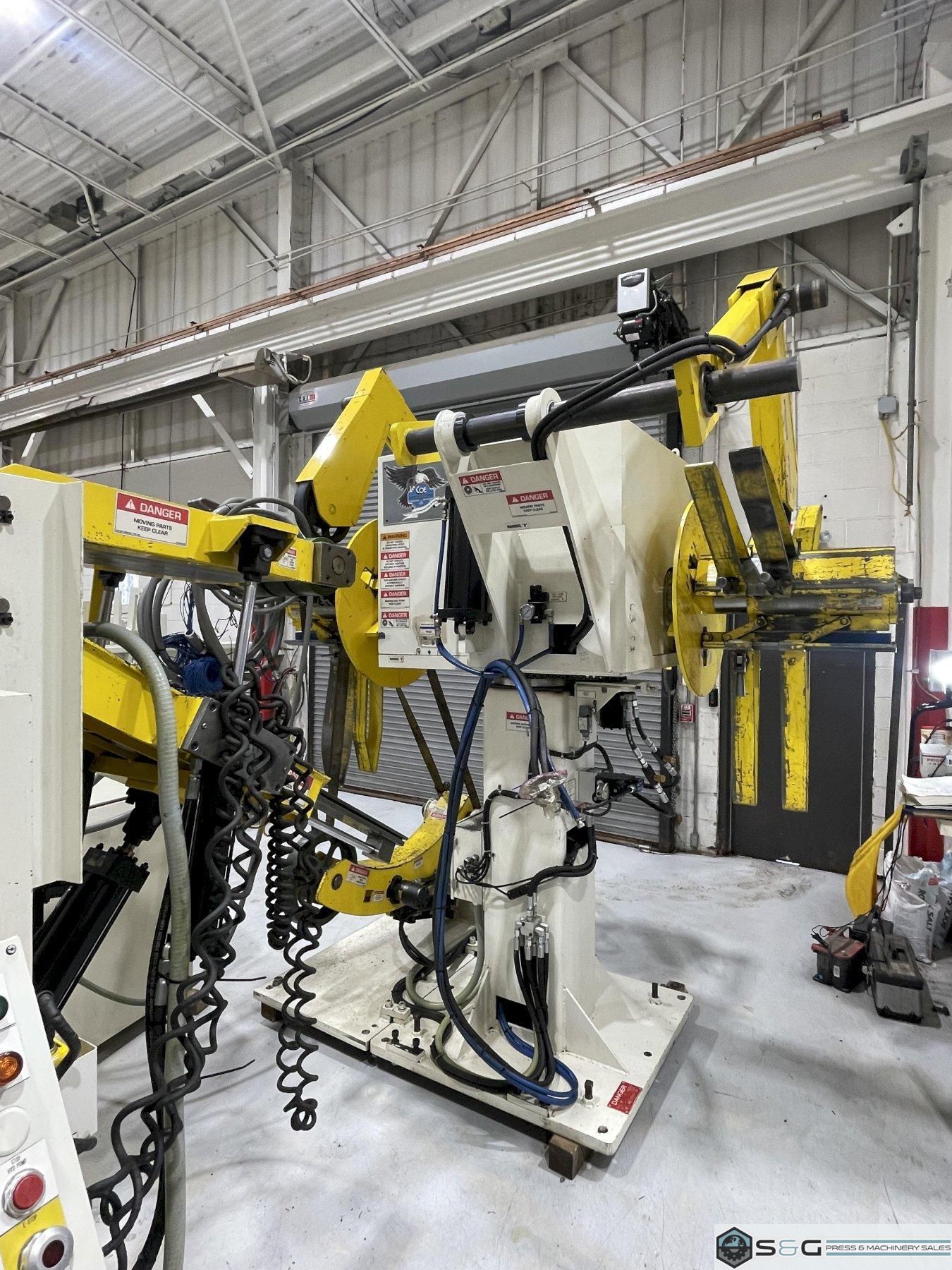

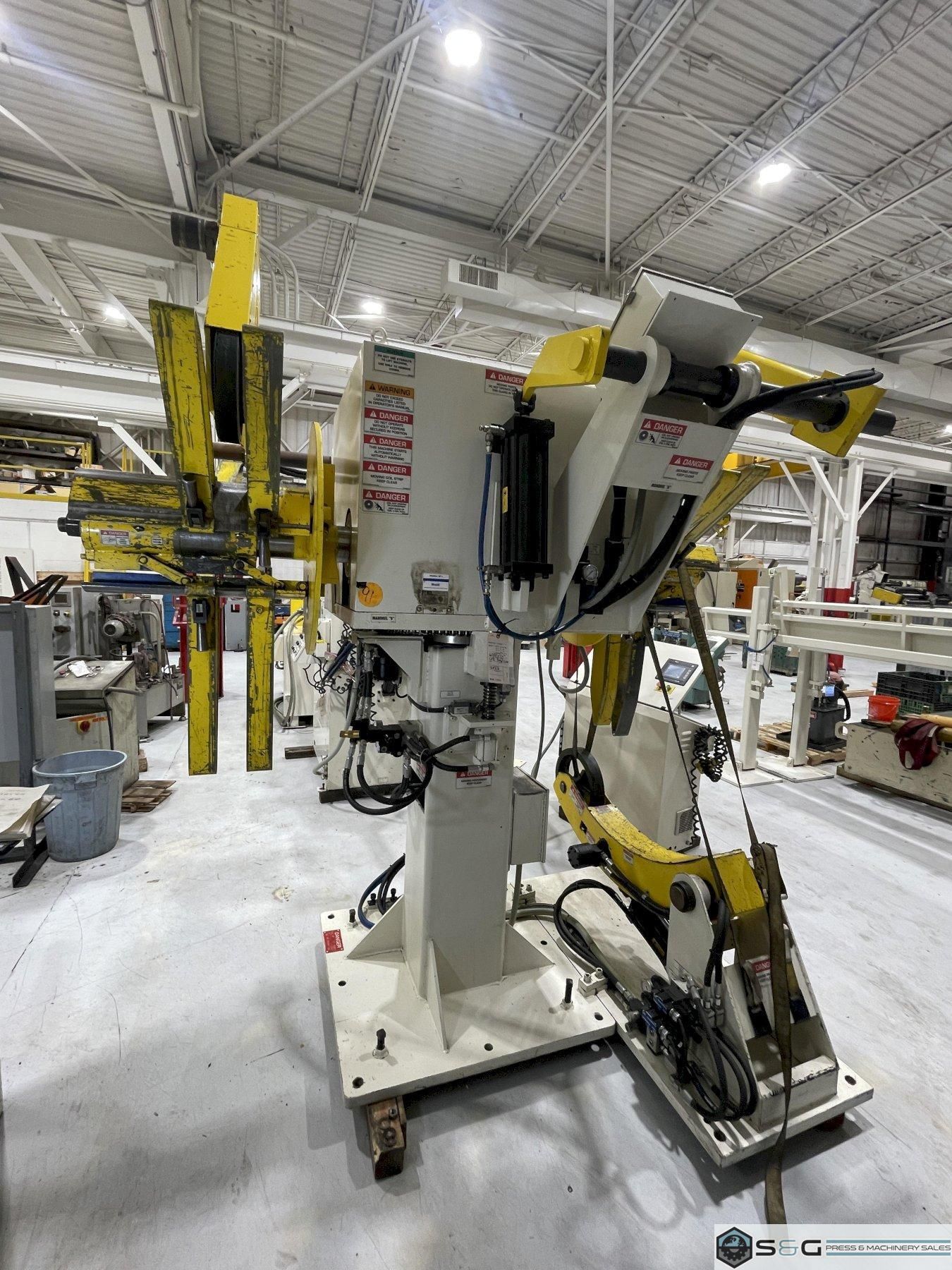

CPR-DE-PO-6018 - Coe Double End Reel 6,000 lbs. x 18" Max. Coil Width 6,000 lbs. Capacity per Side 18" Maximum Coil Width 72" Maximum Coil O.D. 16-21" I.D. Range Serial Number - 63004-5 Three (3) Pad Mandrel Construction
One Set of (6) Quick Release Narrow Coil Keepers
Heavy Duty Welded Reel Construction
30" Diameter Heavy Duty Backplate
"Bearing Tube" Support of Mandrel
Material Width Scale on Mandrel Pad
Hydraulic Mandrel Expansion
Hydraulic Threading Drive
Powered Indexing Feature
Fail Safe Drag Brake to Prevent Coil Over Run
Extra Set of (6) Quick Release Narrow Coil Keepers Coil Hold Down Arms with Motorized End wheels
Lower Hold Up Arm with Motorized End Wheel to Reach within 2.00” of Fully Expanded Mandrel
Special End Cap on Mandrel (Per Photo)
Coil Load on Operator Side

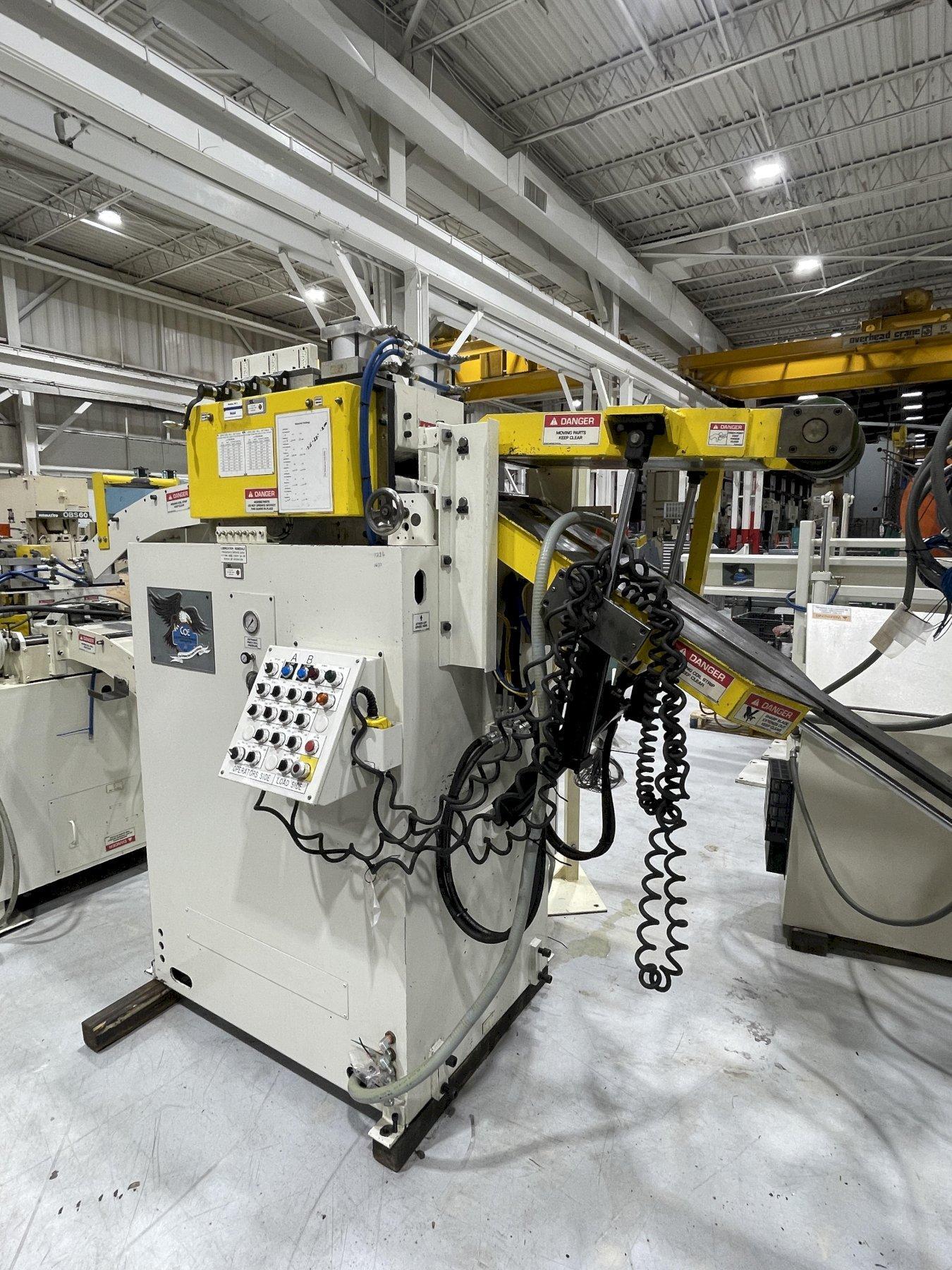

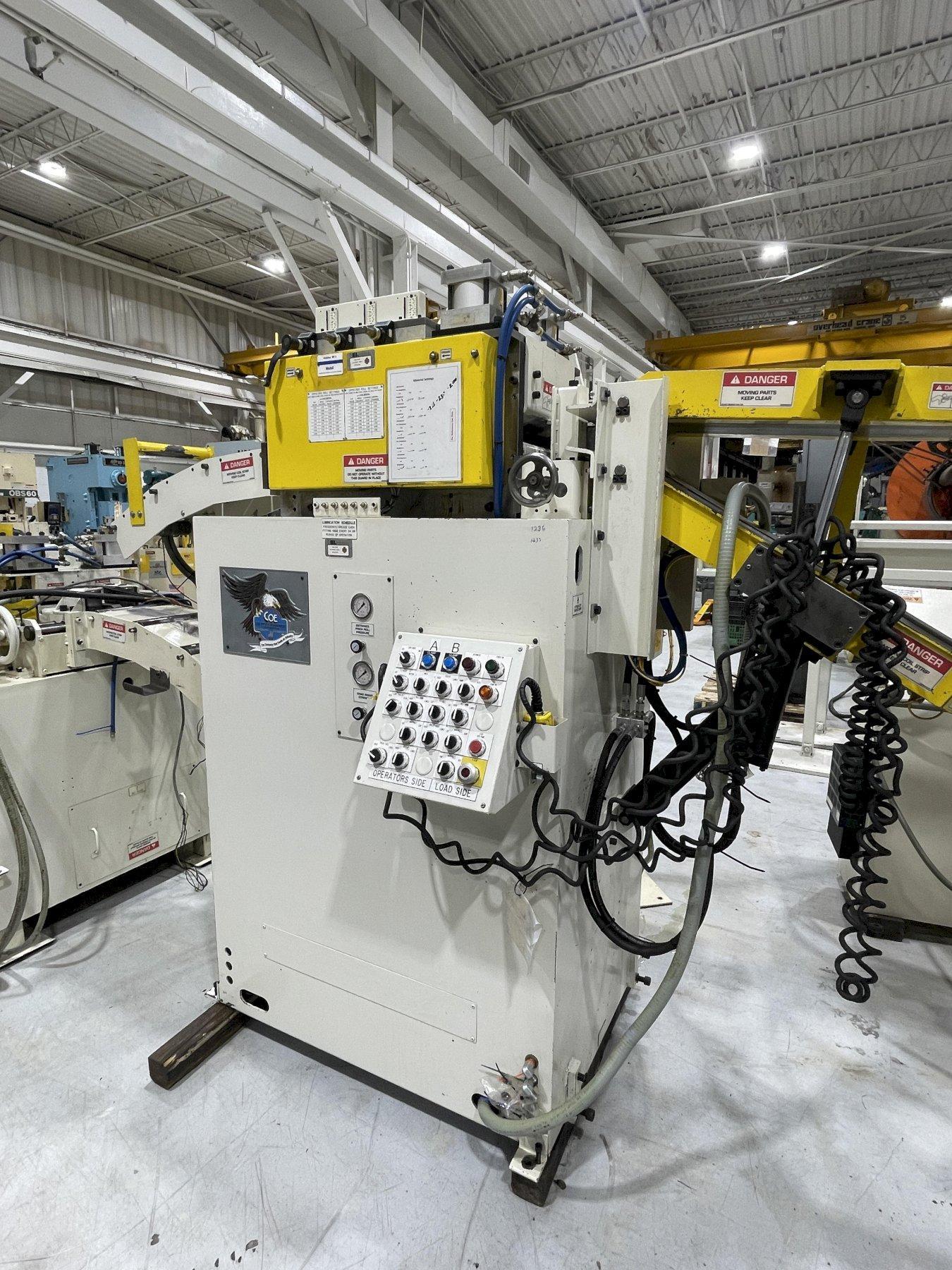

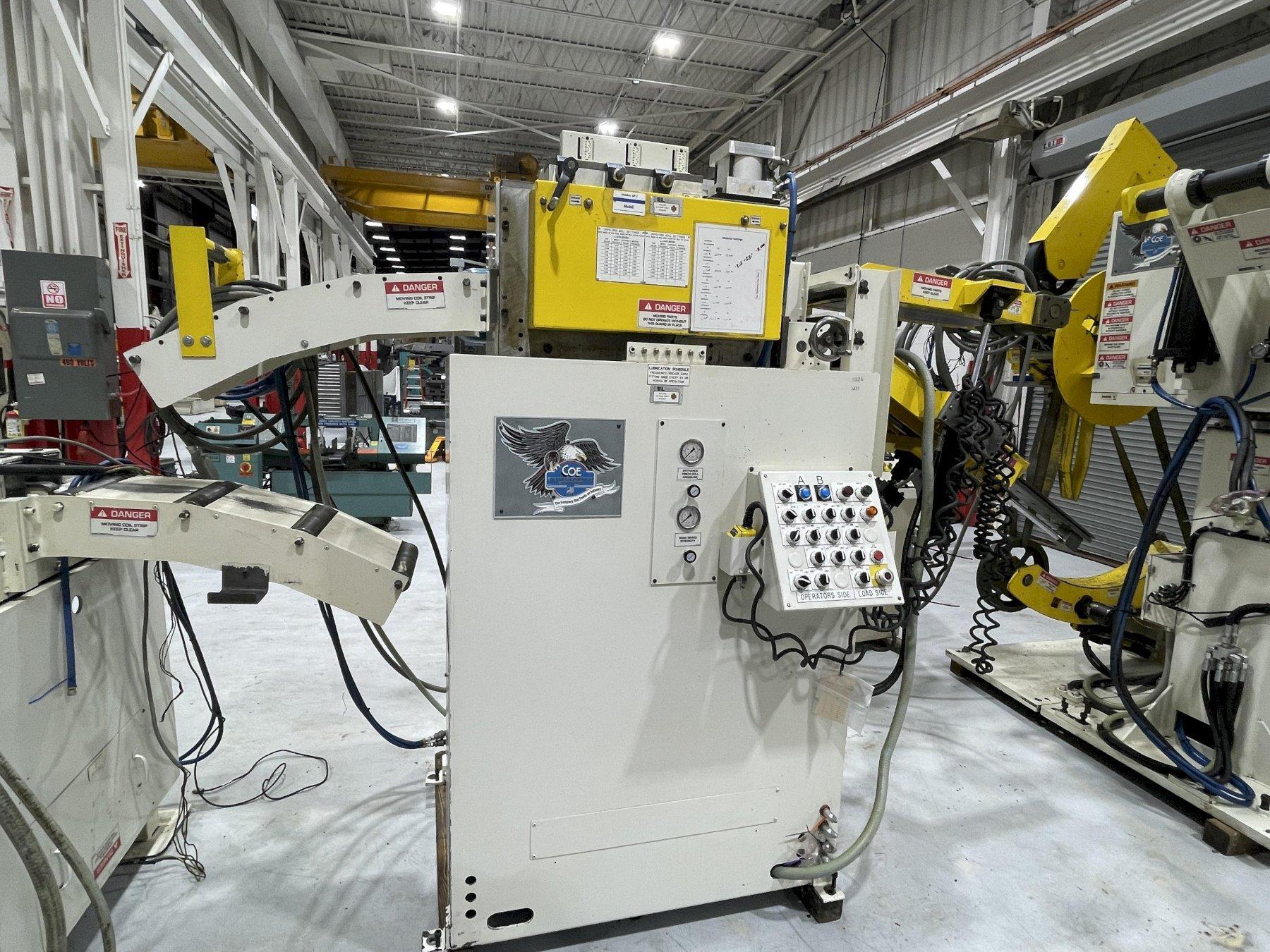

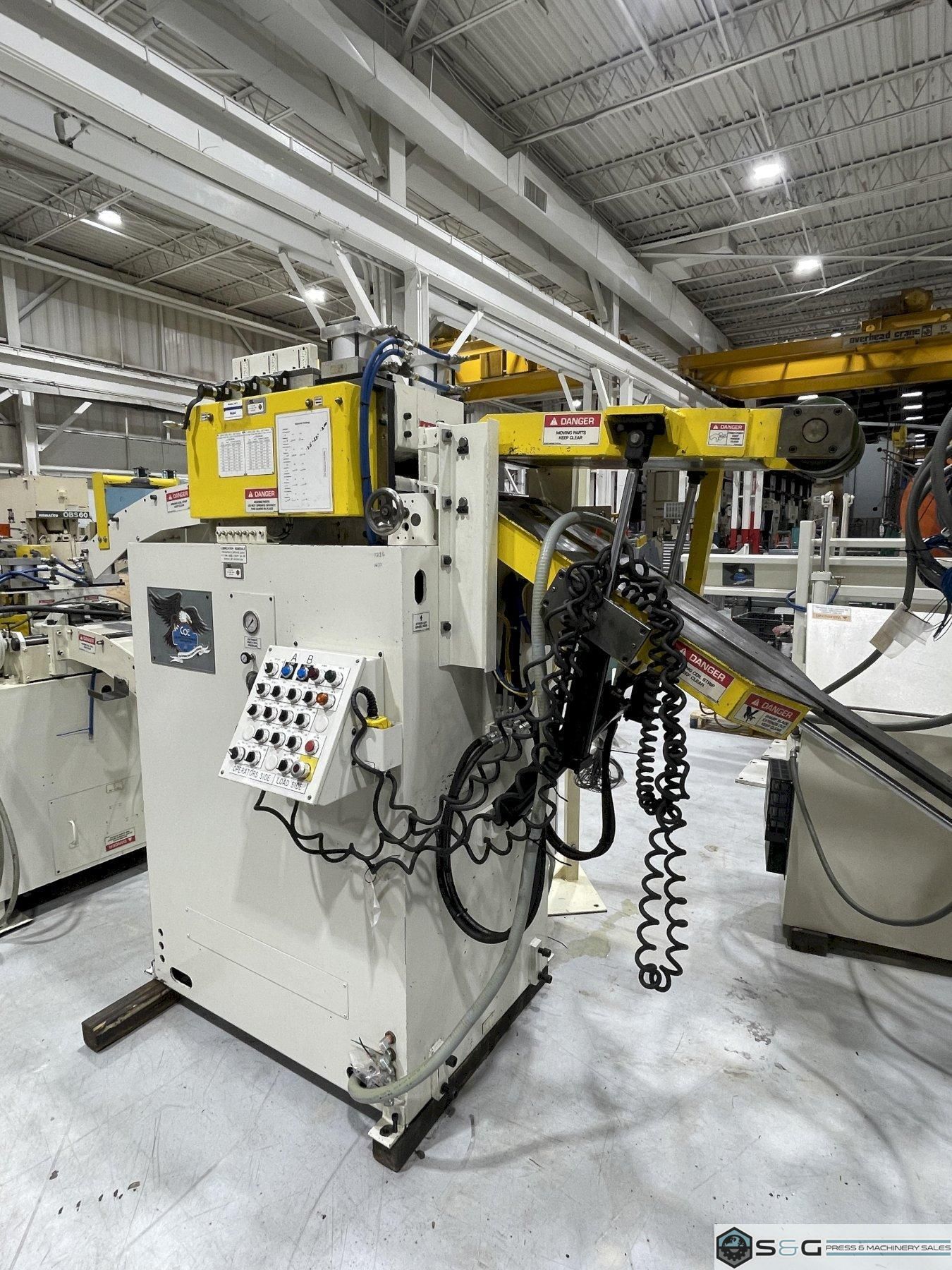

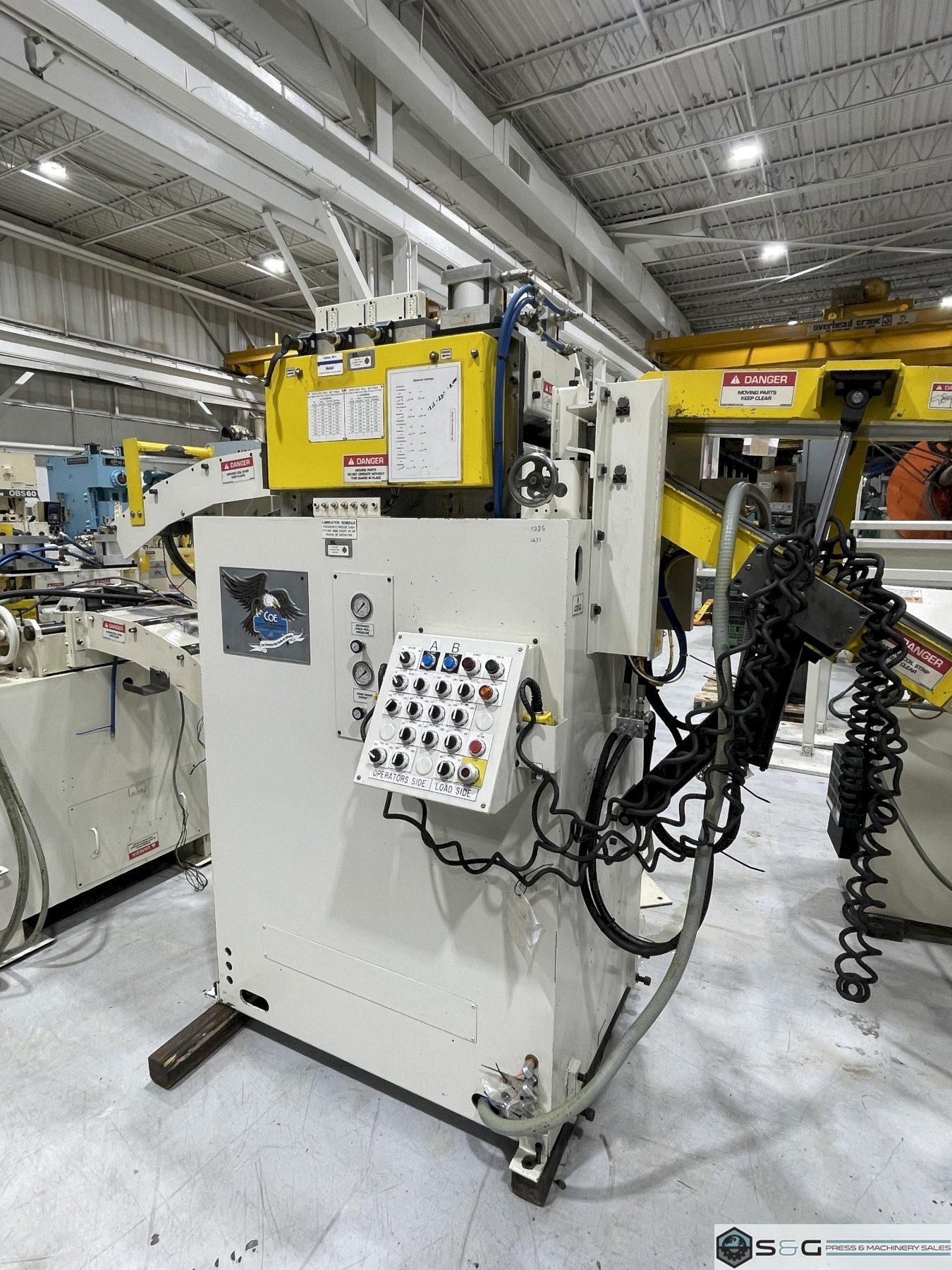

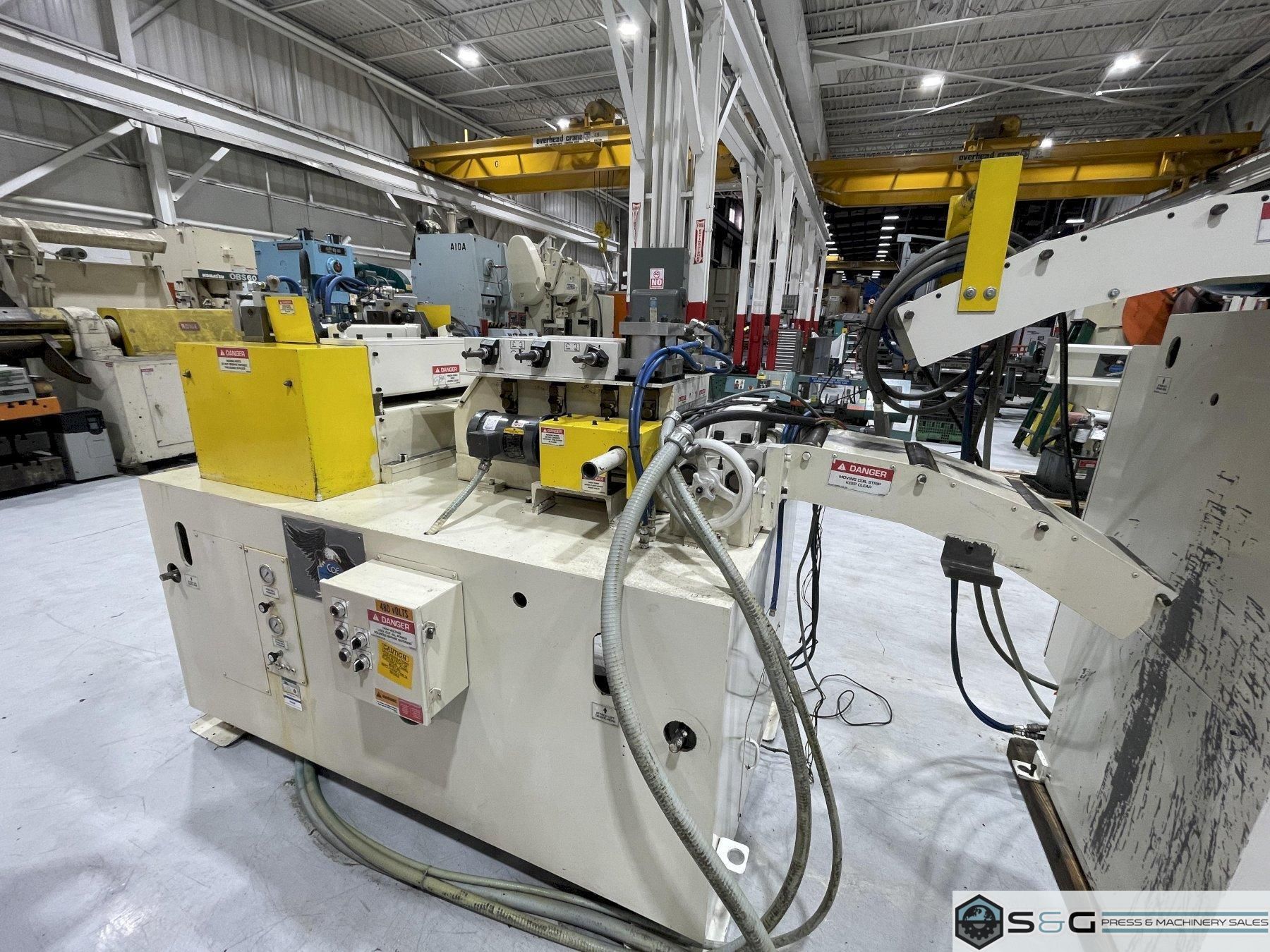

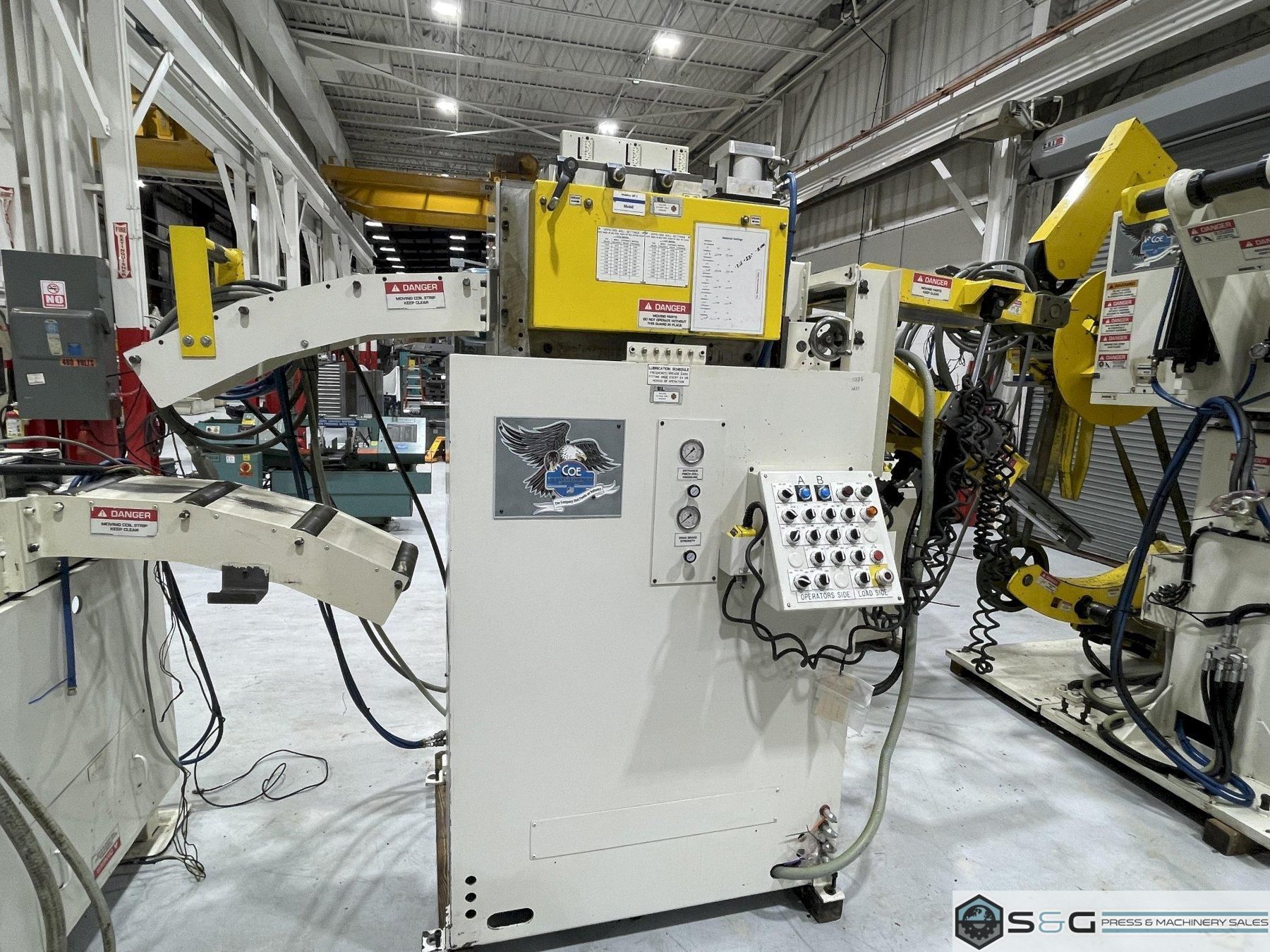

CPPS-350-12 - Coe 3.5" x 12" Power Straightener Cluster Gear Drivetrain for All Lower Straightener Rolls
Funneled Stock Path for Material Threading and Operator Safety
Heavy Duty Welded Straightener Base
Precision Worm Gear Adjustment of Upper Straightener Rolls
Rigid Tie Bar Construction of Straightener Head
Independent Adjustment of Upper Straightener Rolls
Optimized Roll Diameter and Center Distance
Recommended Roll Depth Settings Chart
Remote Jog Pendant for Material Threading
Seven (7) 3.5" Diameter Straightener Rolls for Optimum Straightening Capability
Entrance Side Pinch Rolls
Pneumatic Raise and Lower of Upper Pinch Rolls
Four (4) Roll Catenary Section For Proper Material Support
Direct Mount Drive System for Efficient Torque Transfer
Central Point Lubrication System
Electrical Safety Disconnect

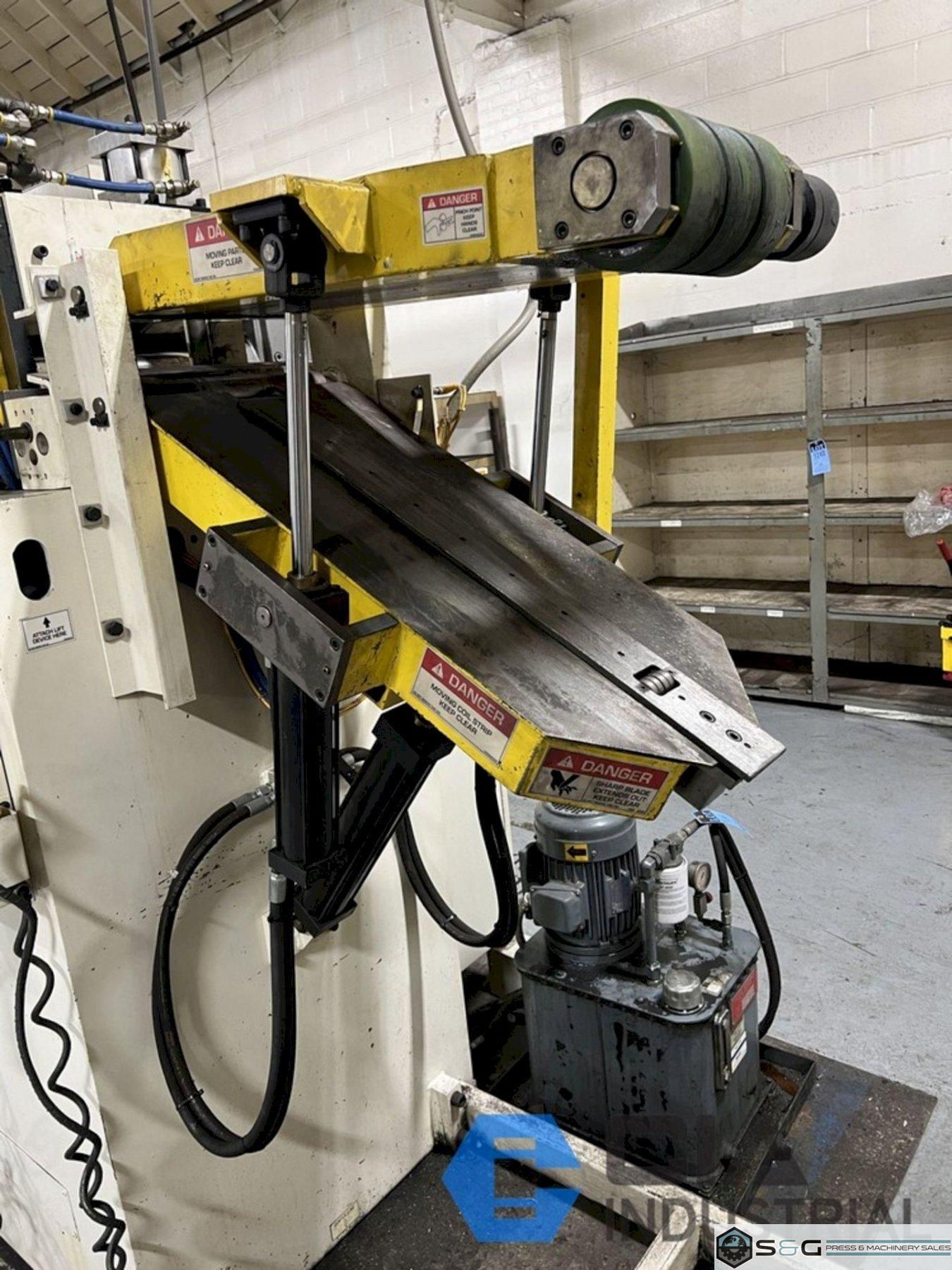

Alligator Style Peeler-Dekinker Station – Reference Job 54643-2 for Top and bottom Payoff
Centralized Controls for Straightener and Reel
Digital Upper Straightener Roll Height Indicators
Self Centering Hand Crank Entrance Edge Guides
10 Horsepower AC Variable Speed Drive - Digital Control
Reel to Straightener Tie In Brackets

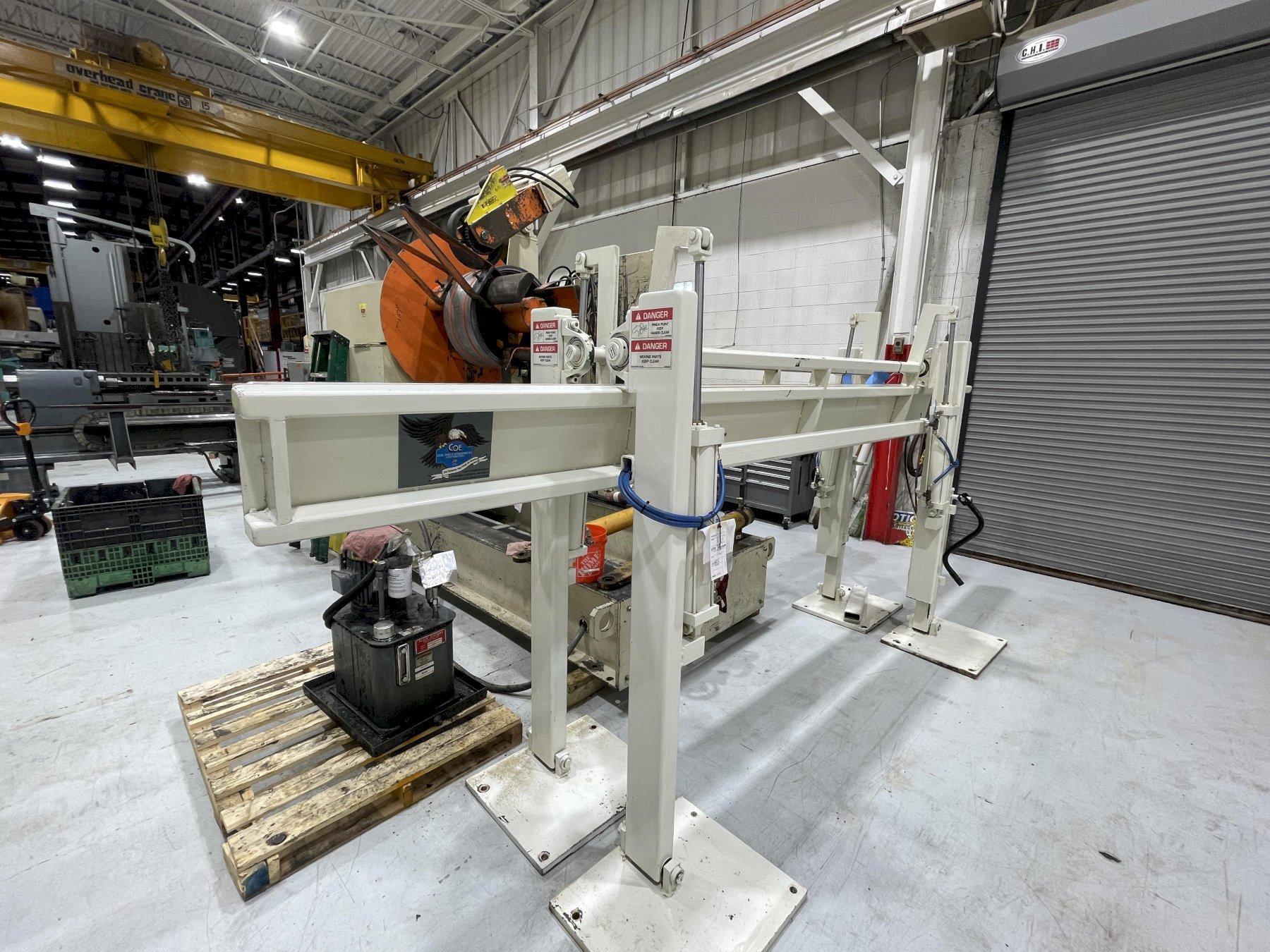

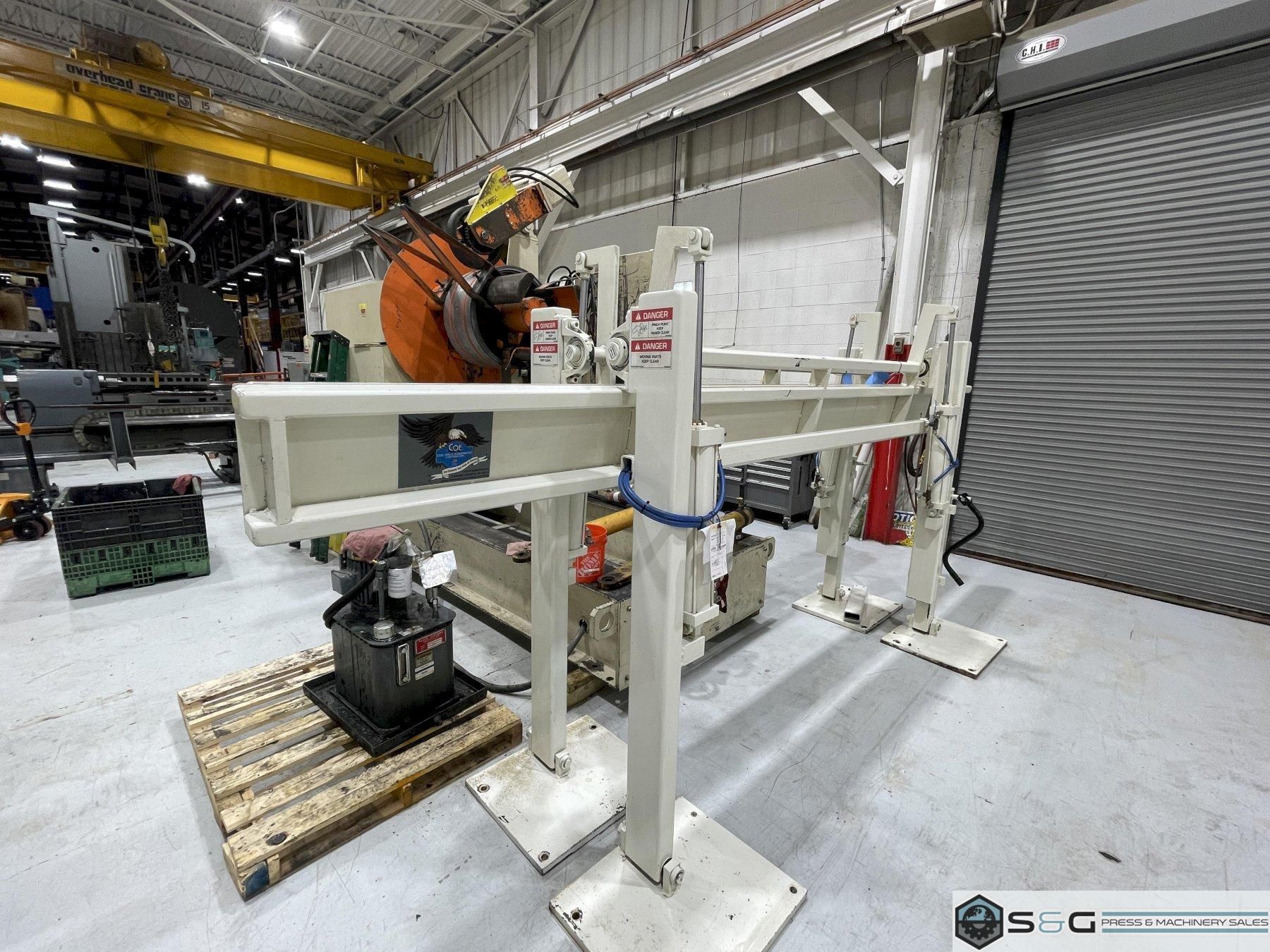

Flat Top Cabinet Laser Loop Control CPPT-1220 - Coe 12" x 20' Threading Table Heavy Duty Steel Solid Top Construction
Single Sided Table Construction
Thread Table Length
Adjustable Pass line Feature
Air Raise and Lower of Threading Table
Threading Table Special Options
Controls Solenoid Operated on Side of Servo Feed Cabinet
Entrance Pass line 69”, exit Pass line 55”
Mount Legs 24” Inside Table Length at Both Ends

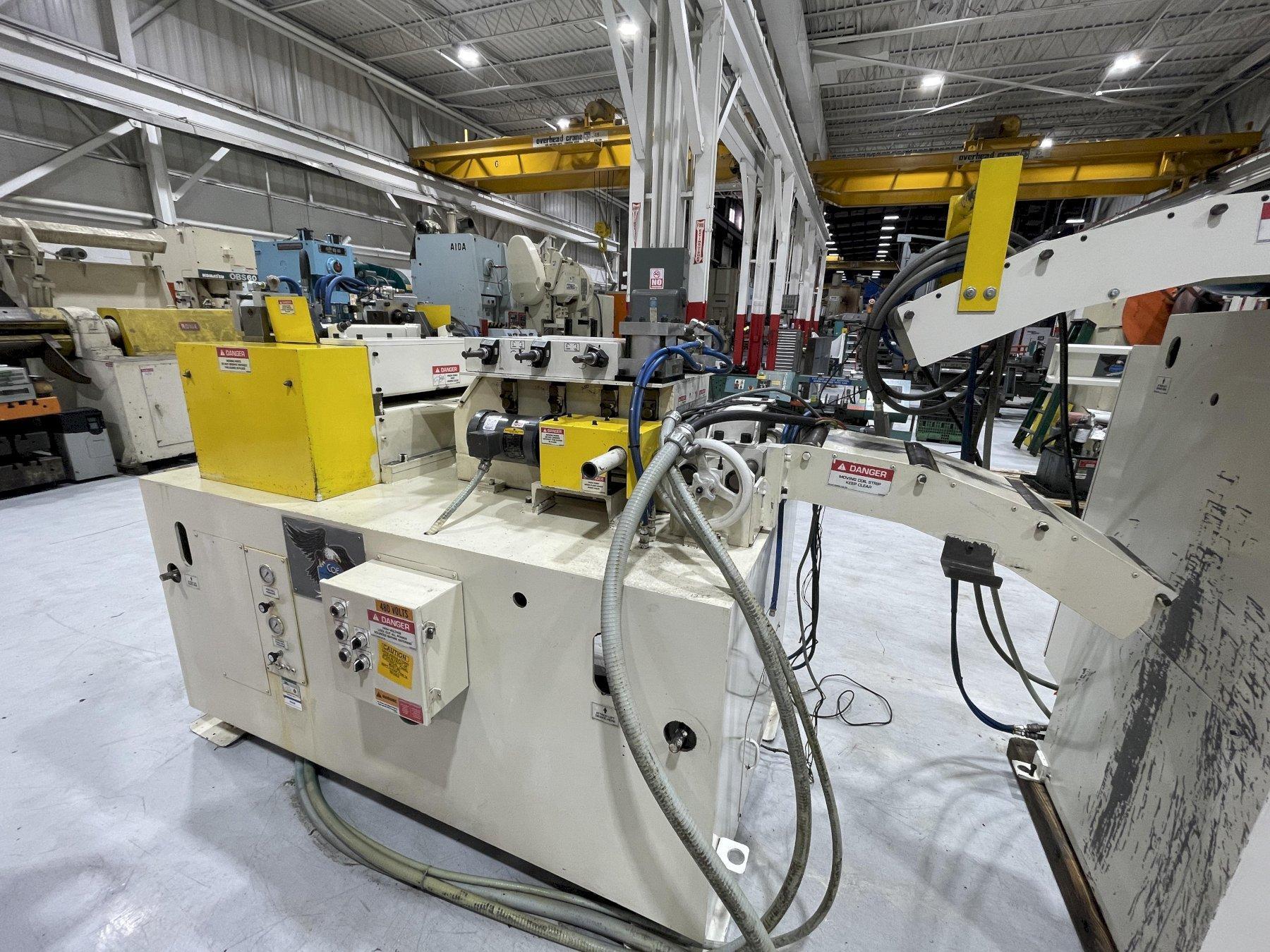

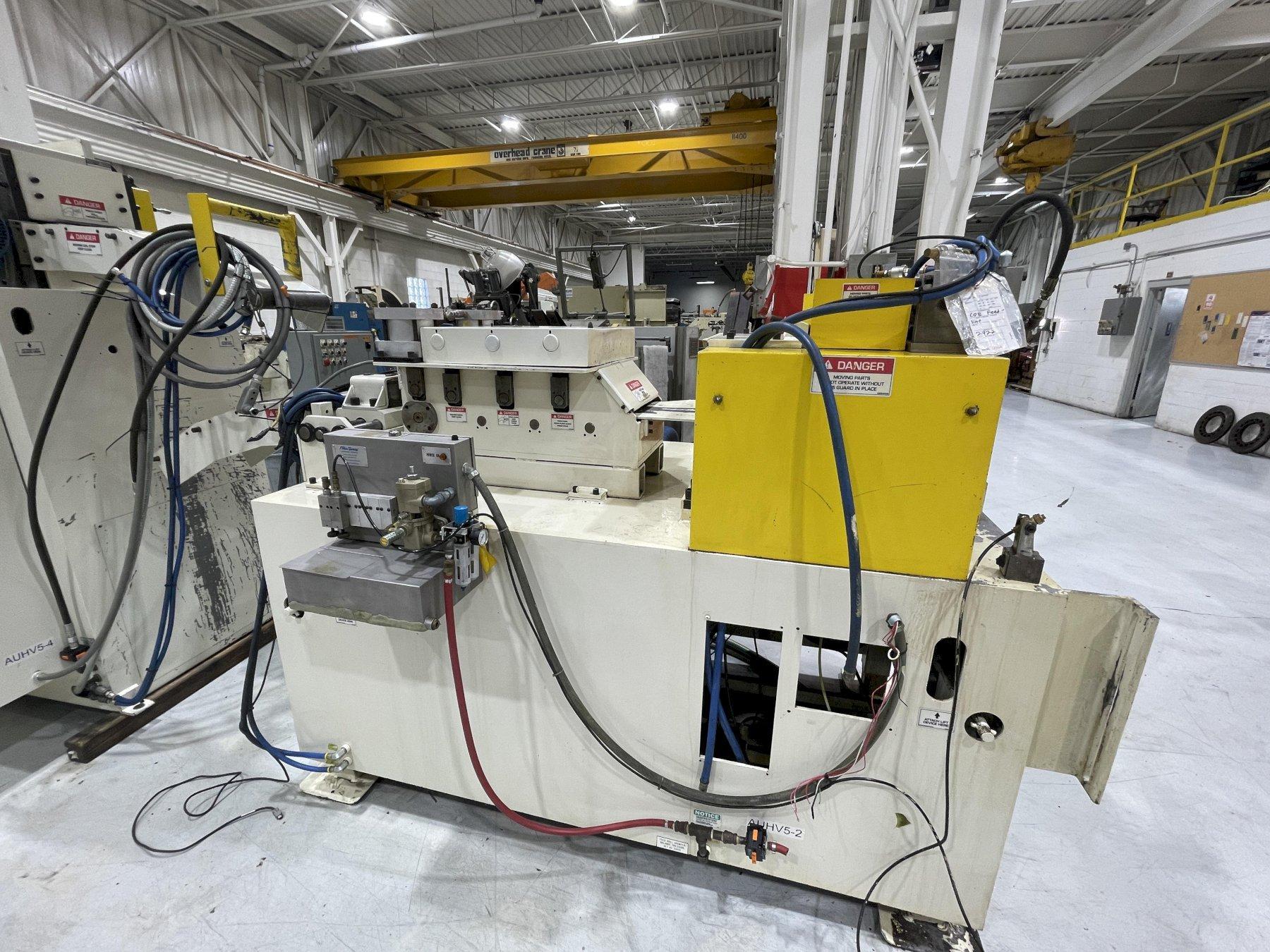

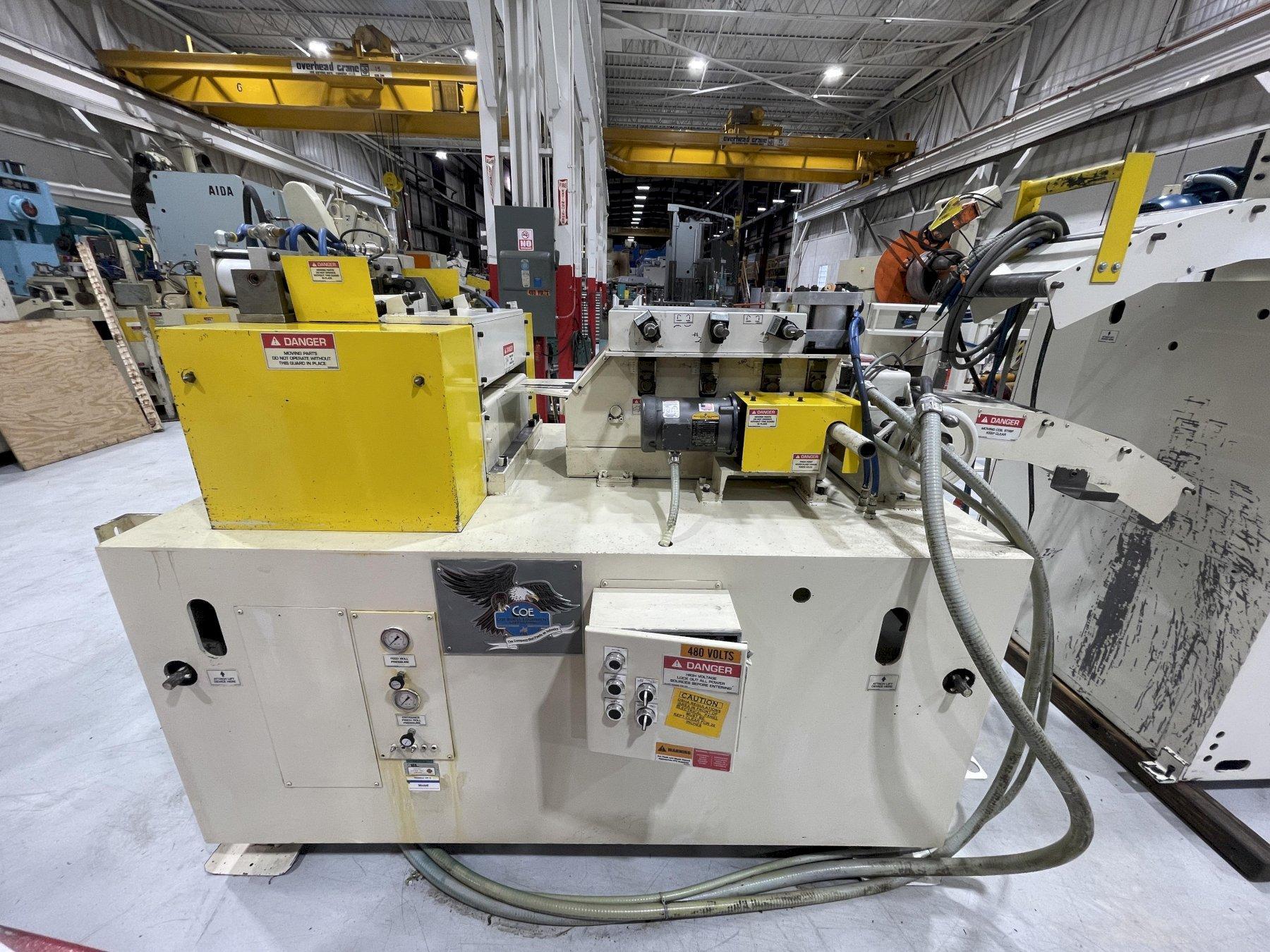

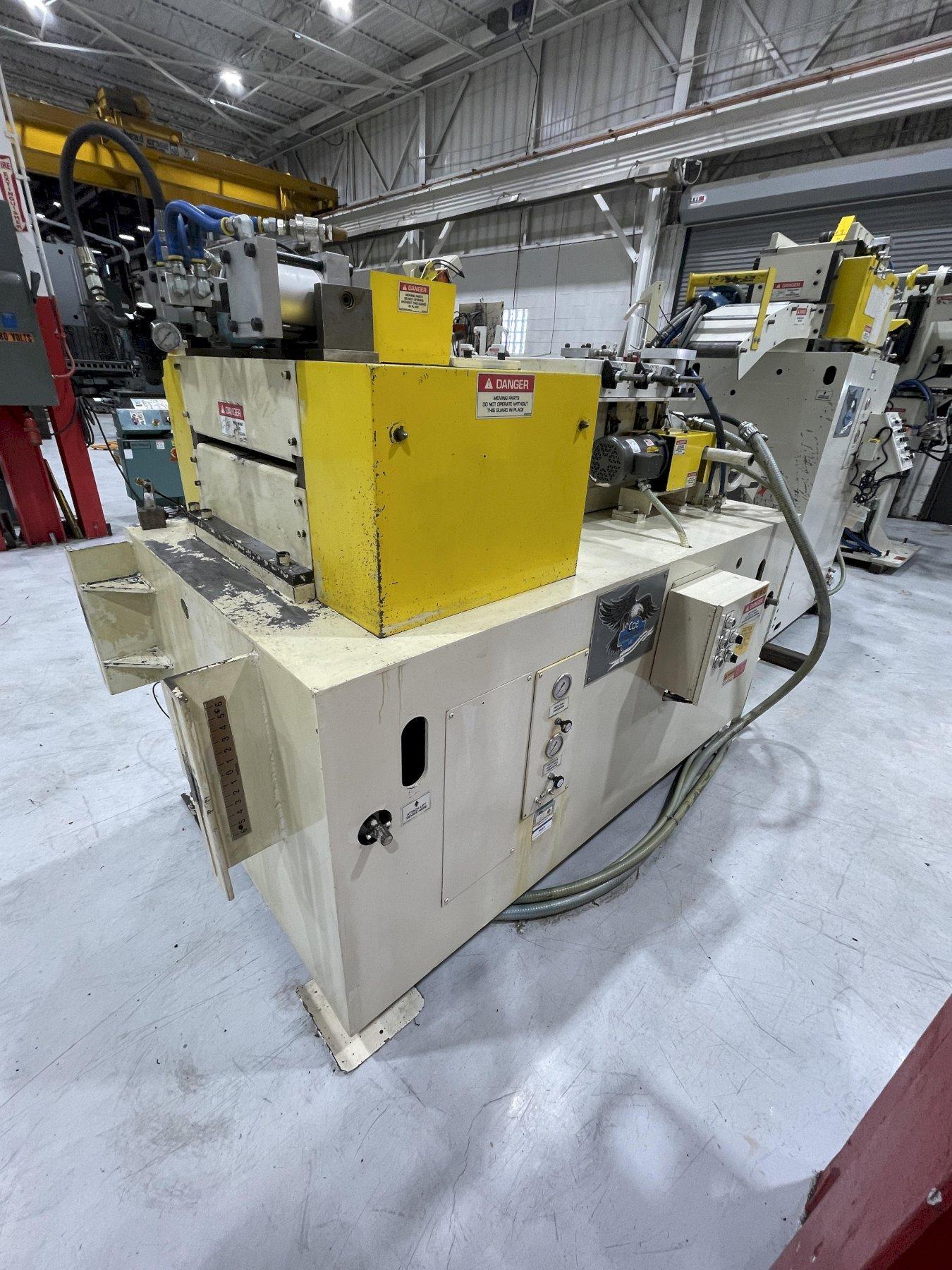

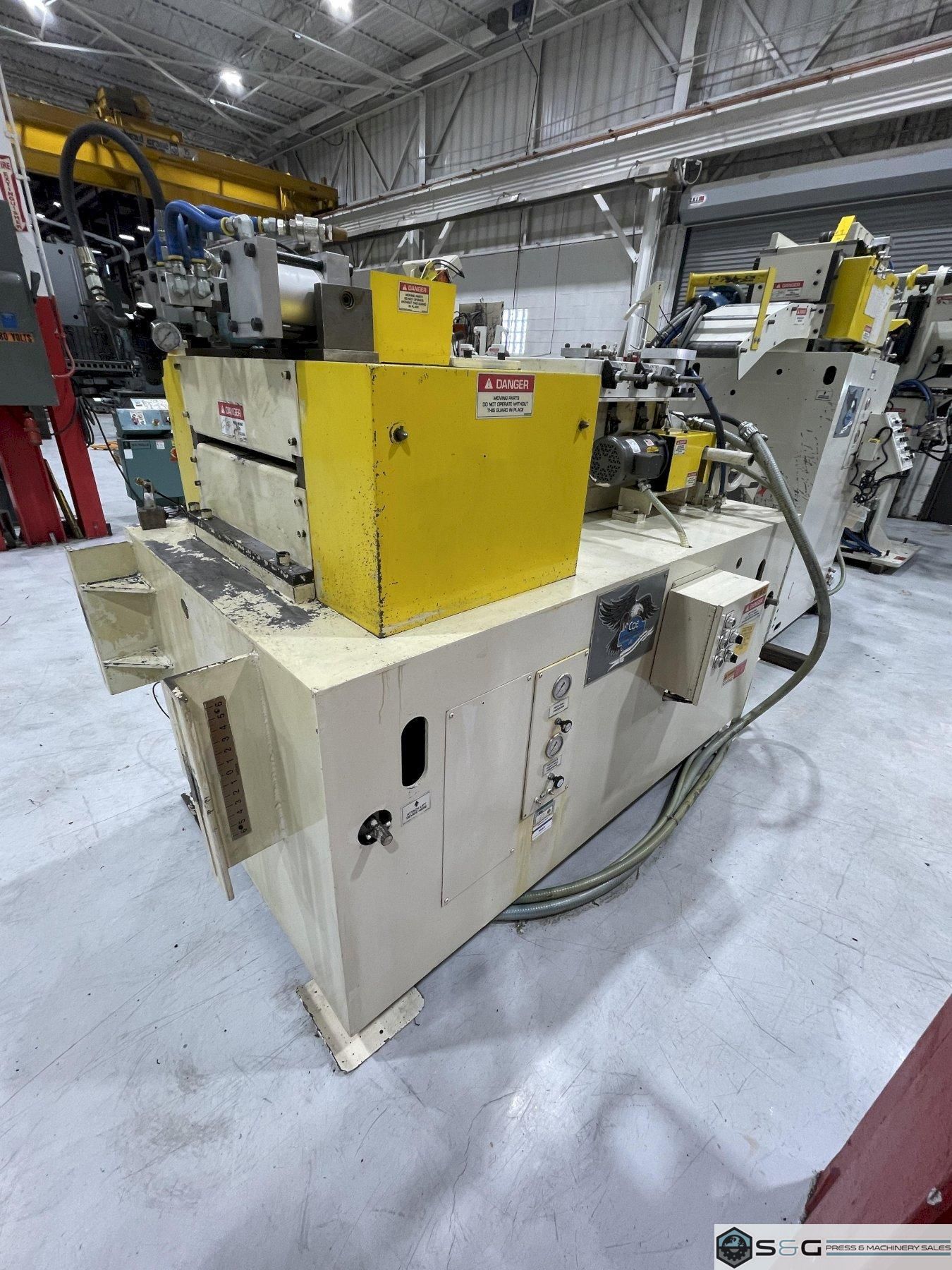

CPRF-518 - Coe 18" Max. Coil Width Servo Roll Feed with CPR - PHS7-12 Pull Thru Straightener 5" Diameter Feed Rolls Cluster Gear Driven Upper Feed Roll with Mating Shafts and Gears
Rigid Machined Tie Bar Construction for Precise Assembly
Sealed Precision Roller Bearings Upper and Lower Feed Rolls With #3 Matte Chrome Finish
Air Pressure Regulator for Exact Feed Roll Pressure
55" Pass Line - Heavy Duty Cabinet with Press Mount Brackets and +/- 6" Adjustment Dual Roll Edge Guides with Self Centering & Independent Adjustment, 12” wide
High Performance Maintenance Free AC Brushless Servo Motor

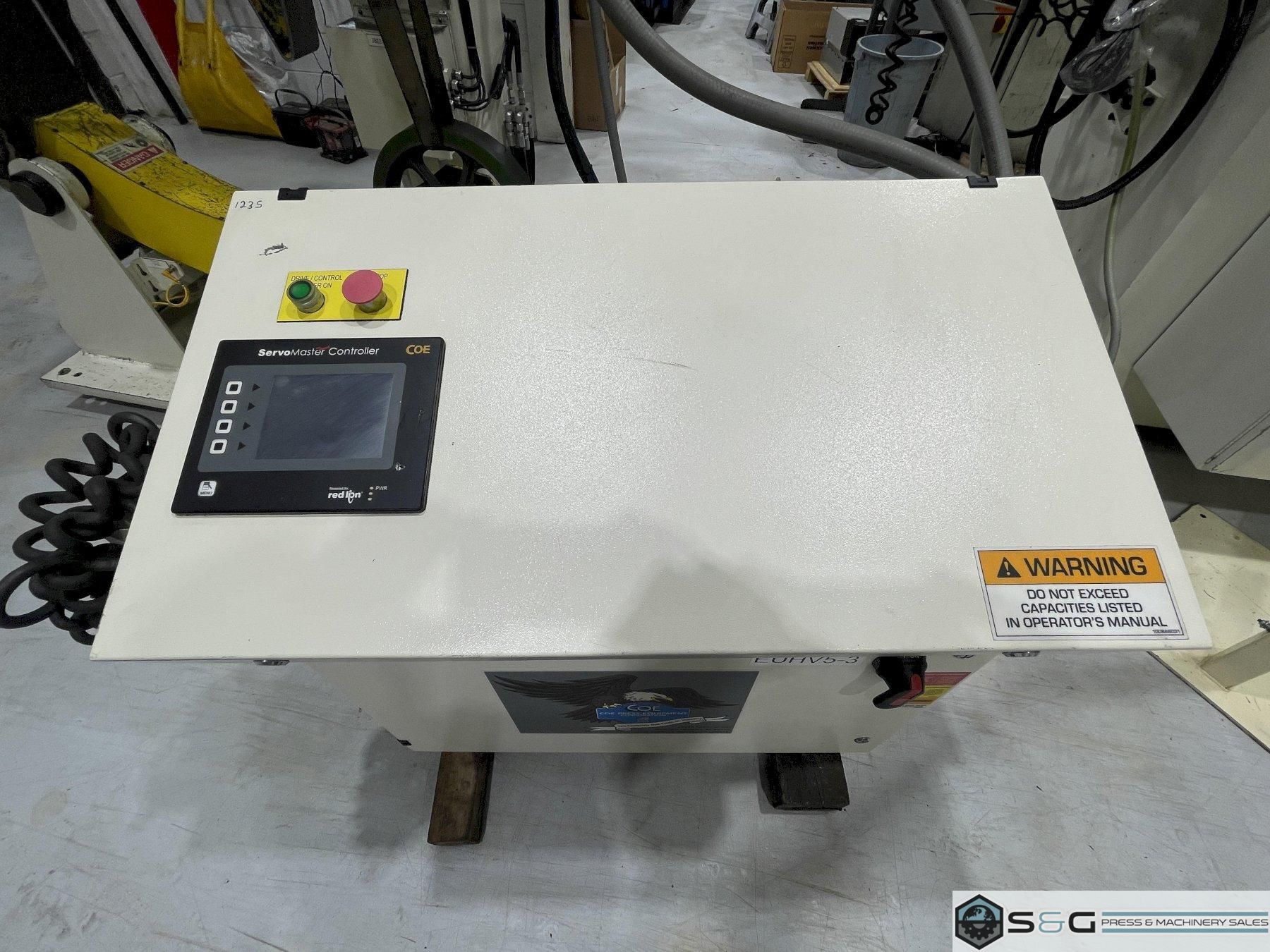

Desk Type Slant Top Control Enclosure
Emergency Stop Push Button
Fused Electrical Safety Disconnect
Remote Jog Pendant
Single Cycle Pushbutton for Set-up at Jog Speed

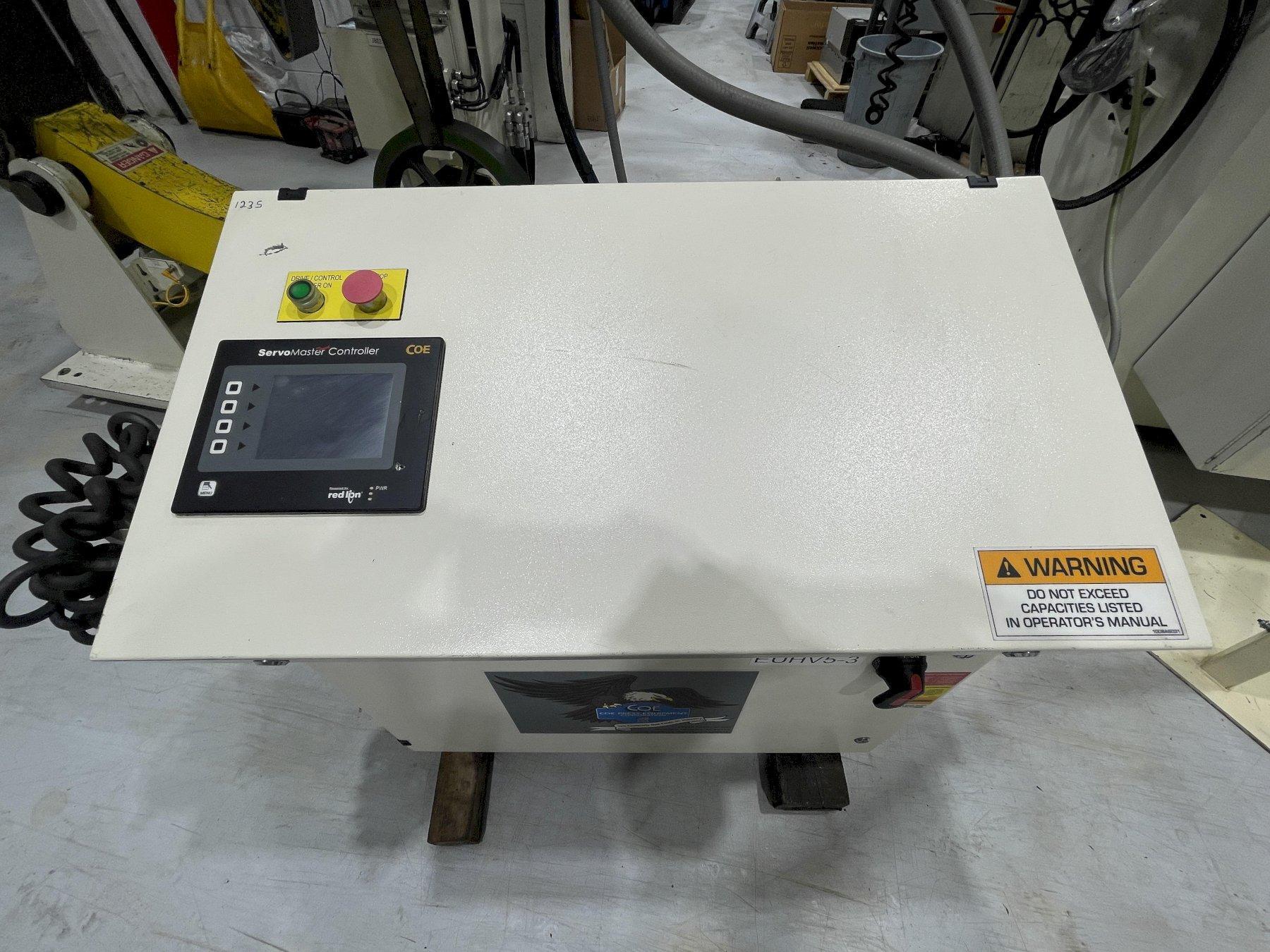

Servo Master Touchscreen Controller
4 Roll Catenary Support Section with Full Side plates and Funnels, 12” wide
Full Width Upper and Lower Feed Rolls
"No Tools" Press Mount
460 Volt AC Three Phase Supply Voltage PHS7-12 Pull Thru Straightener
- (7) 3.00” Diameter Rolls
- Powered Pinch Roll with Air Raise/Lower
- Pinch Roll Raise/Lower Solenoid Operated
|
|||
