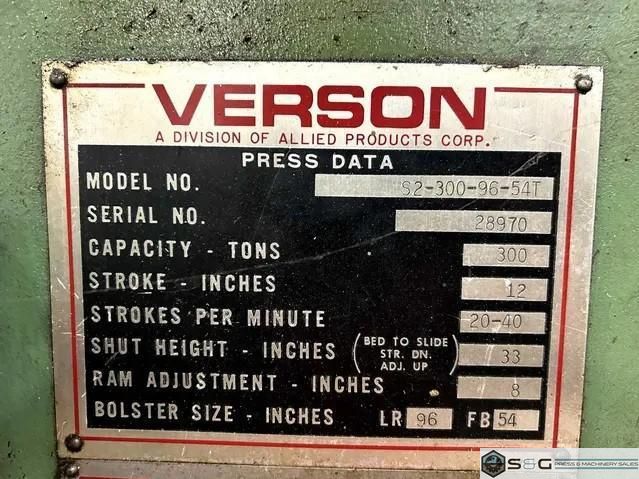

S2-300-96-54t
1990
3010
Reconditioned
Specifications |
|||
|---|---|---|---|
| Tonnage | 300 |
||
| Stroke | 12 inches |
||
| Shut Height | 33 inches |
||
| Adjustment | 8 inches |
||
| Bed Size | 96" LR x 54" FB |
||
| Ram Area | 96" LR x 54" FB |
||
| SPM | 20-40 VSPM |
||
|
Standard Specifications
Used Verson Model S2-300-96-54tStraight Side Double Crank Press300 ton Capacity
12" Stroke
33" Shut Height
8" Adjustment
96" LR x 54" FB Bed Area
96" LR x 54" FB Slide Area
20-40 VSPM
Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
Light Curtains
T-Slotted Ram and Bolster
37" Wide Windows
Motors and Controls

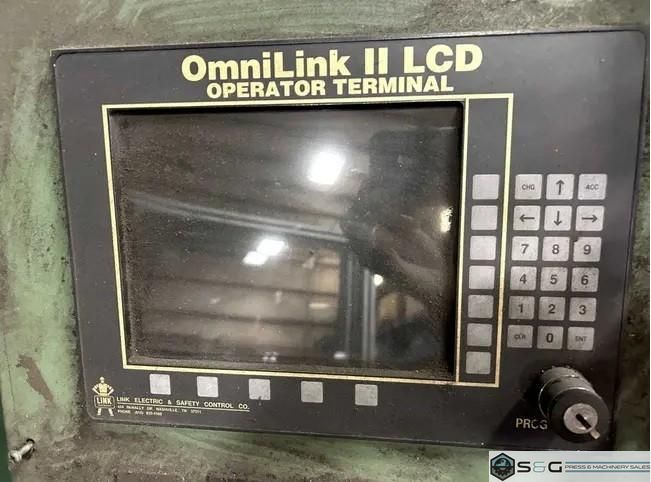

OmniLink II LCD Press Controls
Free Standing Console
Floor Standing
Approximate Weight 94,000lbs
220" Overall Height

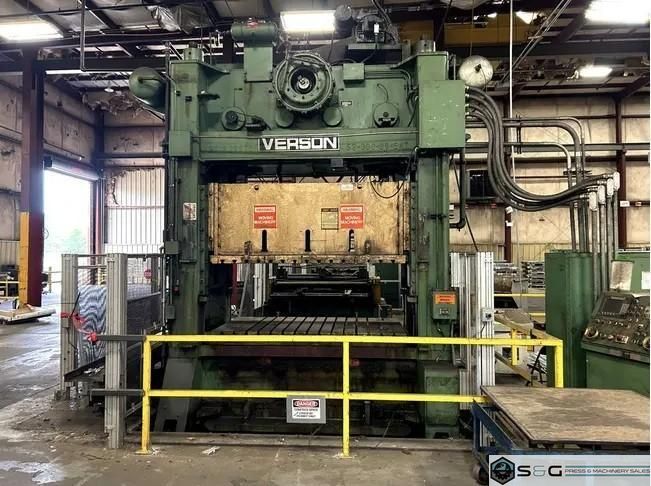

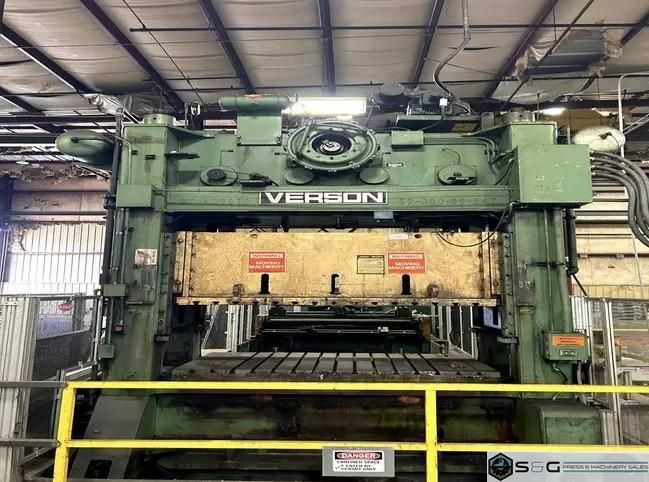

This Used 300-ton Verson Straight Side Mechanical Metal Stamping Press can be seen under power in the S&G Press Livonia Michigan Warehouse!
For Sale:
This 300-ton Verson S2-300-96-54T straight side press offers a robust solution for high-demand progressive die and heavy-duty metal stamping applications. Featuring a 12-inch stroke, a 33-inch shut height, and a generous 96-inch by 54-inch bed, this machine is engineered for versatility and precision. It is equipped with an OmniLink II LCD control system, which provides industry-standard features such as advanced job memory for rapid setup, integrated die protection, and programmable limit switches to synchronize auxiliary equipment. The control also offers comprehensive tonnage monitoring and detailed diagnostic history to maximize uptime and protect your tooling investment. Enhanced by a recirculating lubrication system for smooth, continuous operation, this press is currently available for inspection under power at our Livonia, Michigan facility. Contact S&G Press today to learn how this reliable Verson press can enhance your production capabilities.
|
|||
Attachments |
||
|---|---|---|
|
There are no files attached to this listing currently. If you have any further questions regarding this listing, please contact us for more information. |
||
Machine Tags |
||
|---|---|---|
| Straight Side Double Crank Press, Straight Side Mechanical Stamping Press, 300 ton Metal Stamping Press, 300 ton Straight Side Press, 300 ton Verson Press, Used Verson Mechanical Press, Used Verson Mechanical Stamping Press | ||
Highlights |
||
|---|---|---|
| - High-performance 300-ton capacity optimizes production efficiency for heavy-duty stamping applications. - Precision-engineered straight side design enhances stability and minimizes deflection during operation. - Equipped with double crank mechanism for consistent power delivery and improved workpiece accuracy. |
||
