E2-300-72-42 Hevistamper
1997
2888
Used
Specifications |
|||
|---|---|---|---|
| Tonnage | 300 |
||
| Stroke | 8 inches |
||
| Shut Height | 26 inches |
||
| Adjustment | 6 inches |
||
| Bed Size | 72" LR x 42" FB |
||
| Ram Area | 72" LR x 42" FB |
||
| SPM | 0-100 |
||
|
Standard Specifications

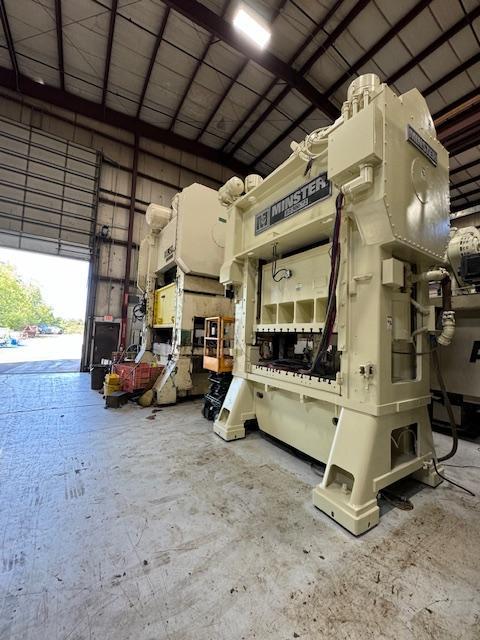

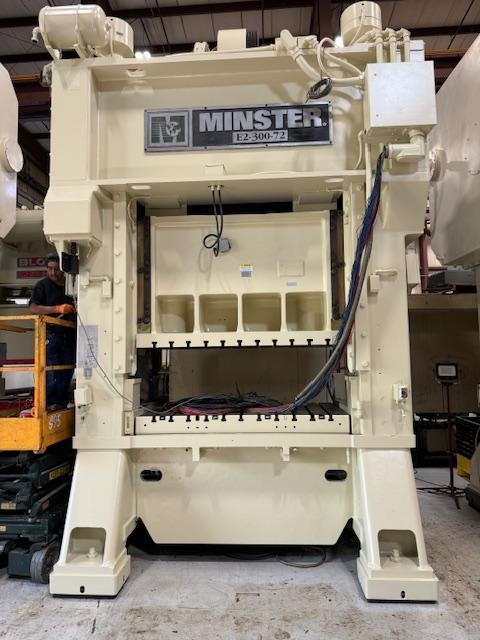

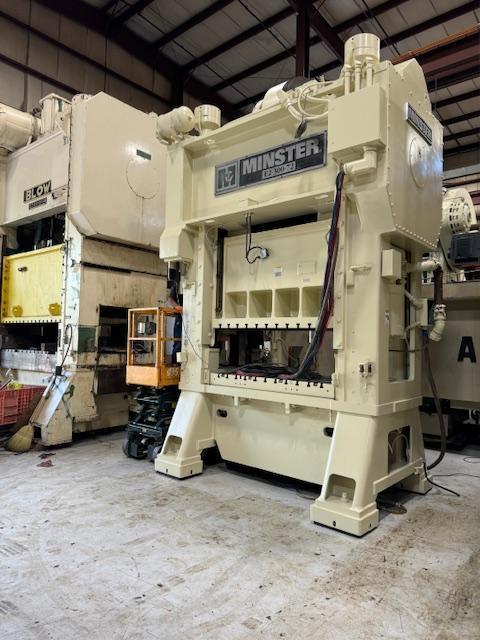

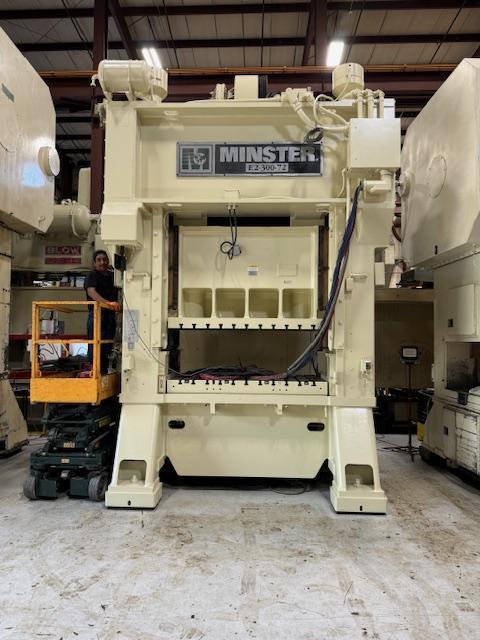

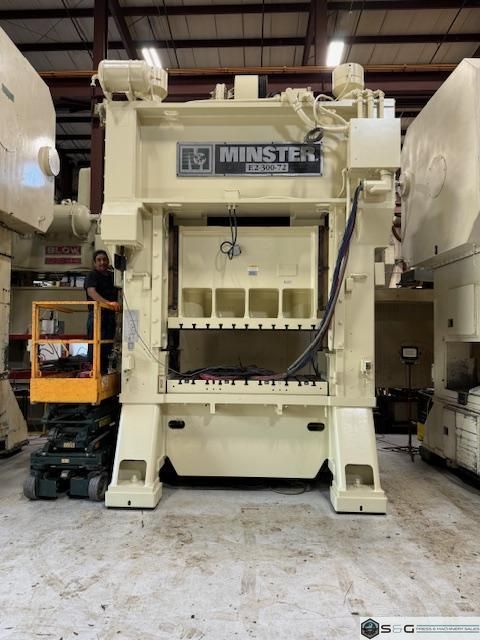

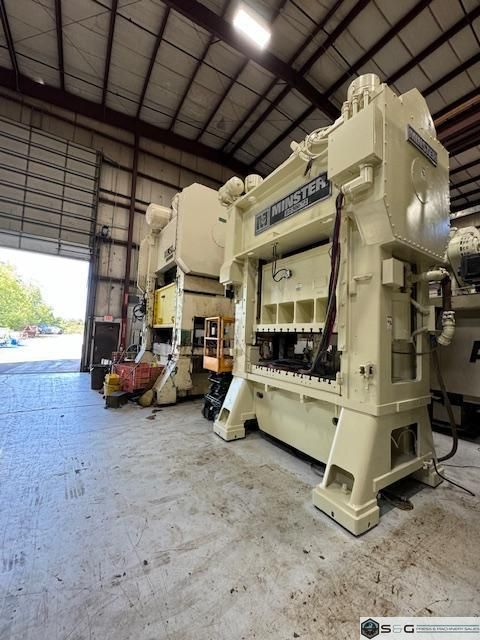

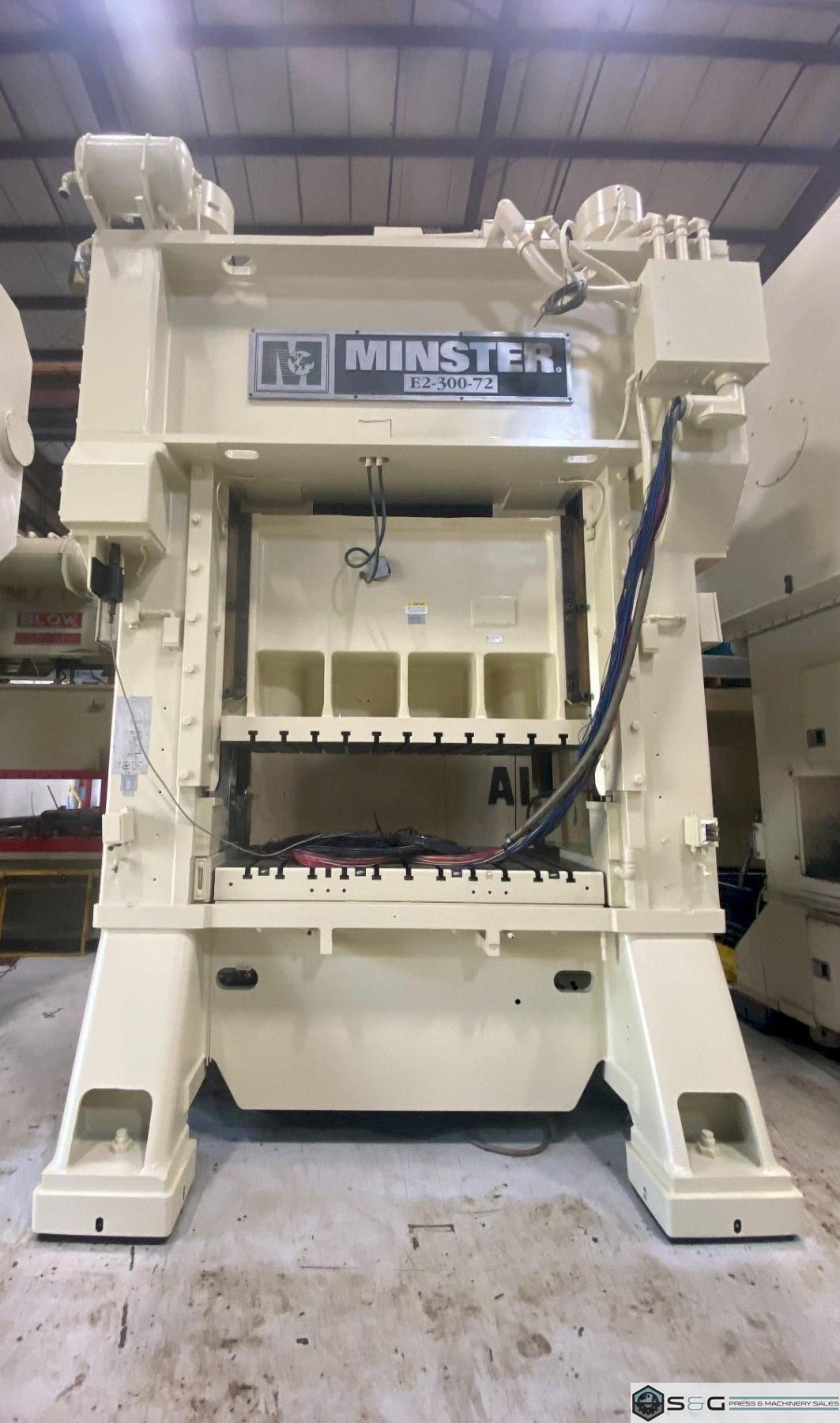

Used Minster Straight Side Mechanical Stamping Press
Model E2-300-72-42 Hevi-Stamper
Serial Number/ 29119 Price includes a comprehensive mechanical rebuild, featuring all new bushings, bearings, seals, liners, and brake pads. For a complete scope of work, please inquire with your sales representative. 300 ton Capacity
8" Stroke
26" Shut Height on Bed
6" Motorized Adjustment
72" LR x 42" FB Bed Area
72" LR x 42" FB Slide Area
0-100 VSPM
Equipment and Features
Minster Combination Air Clutch and Brake
Air Counterbalances
Minster Monitor Flow Recirculating Lube System
Single Geared - Twin End Drive T-Slotted Ram and Bolster
6" Thick Bolster Plate Free Standing Console Controls

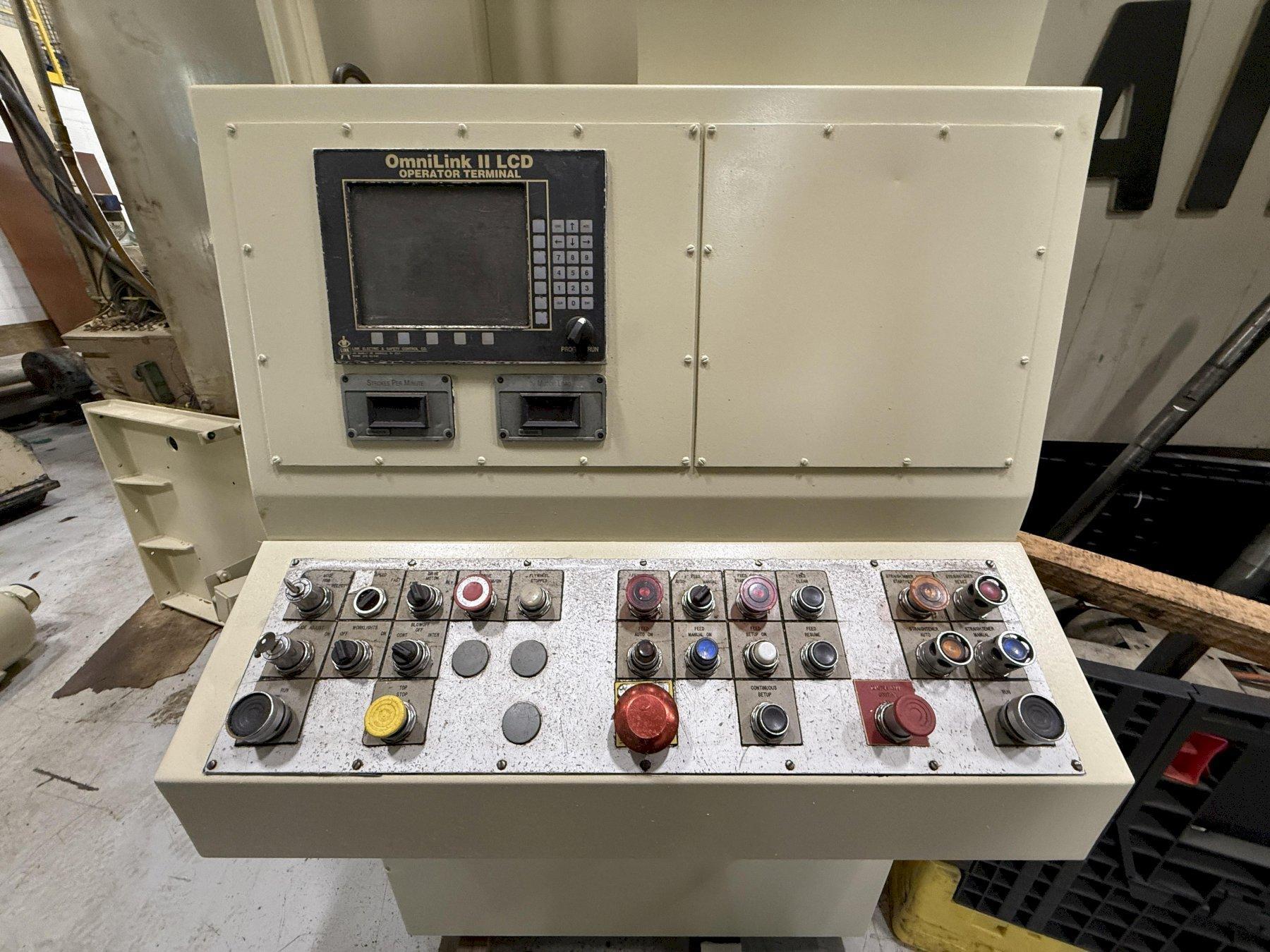

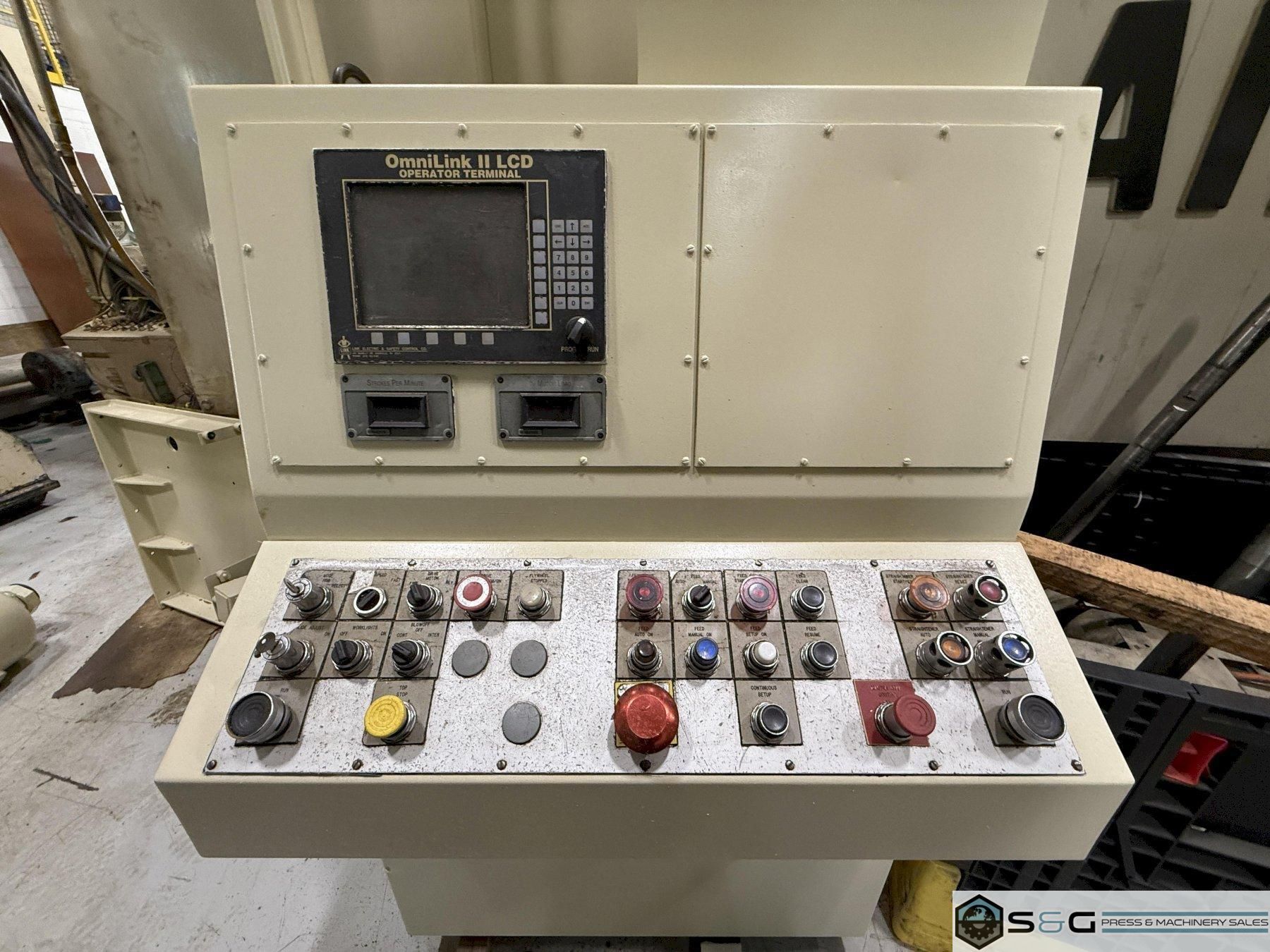

OmniLink II LCD Operator Terminal OmniLink 5000 Press Controls- Including: - 8 PLS Channels -105 Programmable Set Ups - OmniLink Die Protection Module - OmniLink 5000 4 Channel Tonnage Monitoring Module - Automatic Counterbalance Adjustment - Automatic Shut Height Adjustment 50 HP, 1800 RPM Main Drive Motor 27" Wide Windows
38" Floor to Top of Bed Hydraulic Tie Rod Nuts
Vibro Dynamic Floor Pads Floor Standing
Weight of Press: 93,000 lbs. This rebuilt 300 ton Minster Hevi-stamper Press can be seen under power in the S & G Press Livonia Michigan Warehouse.
Click for more 300-ton Press Options In the realm of metalworking, Minster's 300-ton Hevi-stampers reign supreme. These mechanical workhorses pack a serious punch, delivering up to 300 tons of force to effortlessly form and shape even the thickest sheets of metal. Their secret lies in the double crank design, which guarantees balanced pressure throughout the forming process. No matter the project size, the Hevi-stamper's spacious bed ensures it can handle even the most demanding tasks. At S&G Press, we are proud to feature an exceptional 300-ton Minster E2-300-72-42 Hevi-Stamper press for sale. This used mechanical stamping press represents the pinnacle of durability and precision for demanding metal forming operations. The Minster Hevi-Stamper series is renowned industry-wide for its rugged construction, built to withstand continuous, heavy-duty production cycles. This specific 300-ton Minster E2 model offers a substantial 72" x 42" bed area, providing ample space for large dies and complex parts. It features an 8" stroke and can operate up to 100 strokes per minute, ensuring high productivity. Its robust design minimizes deflection, leading to superior part quality and extended die life. Choosing this Minster press from S&G Press means investing in a reconditioned or thoroughly inspected machine that delivers reliable performance, offering significant value compared to new equipment. Contact us to learn more about this prime metal stamping press opportunity. |
|||
Attachments |
||
|---|---|---|
| 300-ton Minster Hevi-Stamper GA Drawing.pdf | Download | |
Machine Tags |
||
|---|---|---|
| Used Minster Press, Minster High Speed Press For Sale, Minster Hevi-stamper Press, Used Minster Press For Sale, 300-ton Minster Metal Stamping Press, Used Mechanical Metal Stamping Press, Metal Stamping Press For Sale, 300 ton Straight Side Press, 300 ton Metal Stamping Press, Used 300 ton Press For Sale | ||
Highlights |
||
|---|---|---|
| - High-performance 300-ton Minster Hevi-Stamper press - Year 1997 model in excellent working condition - Impressive 72" x 42" bed size for versatile stamping applications - Robust 8" stroke capability for efficient operations - Adjustable shut height and 0-100 SPM for precision control - Ideal for metal stamping with reliable double crank mechanism - Located in Livonia Michigan for convenient inspection under power in the S&G Press Warehouse |
||
