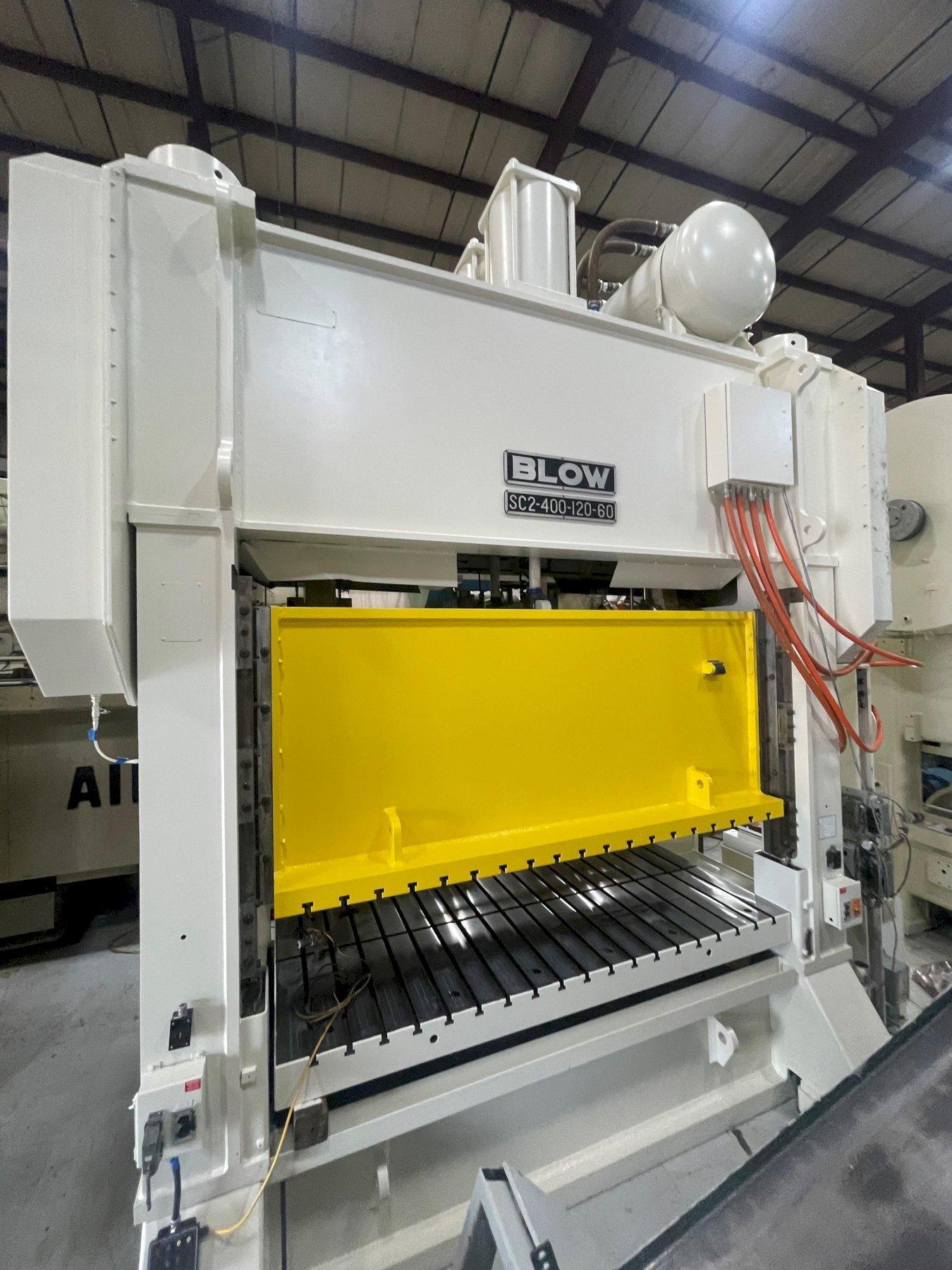

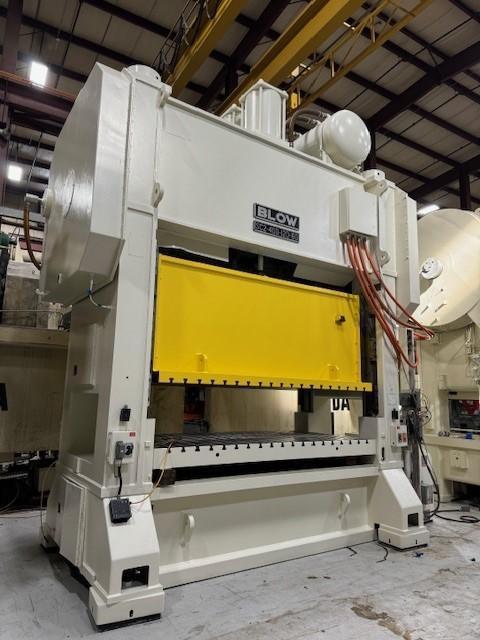

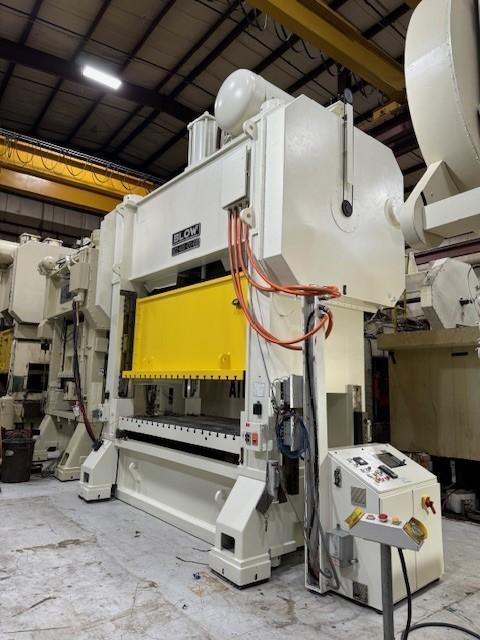

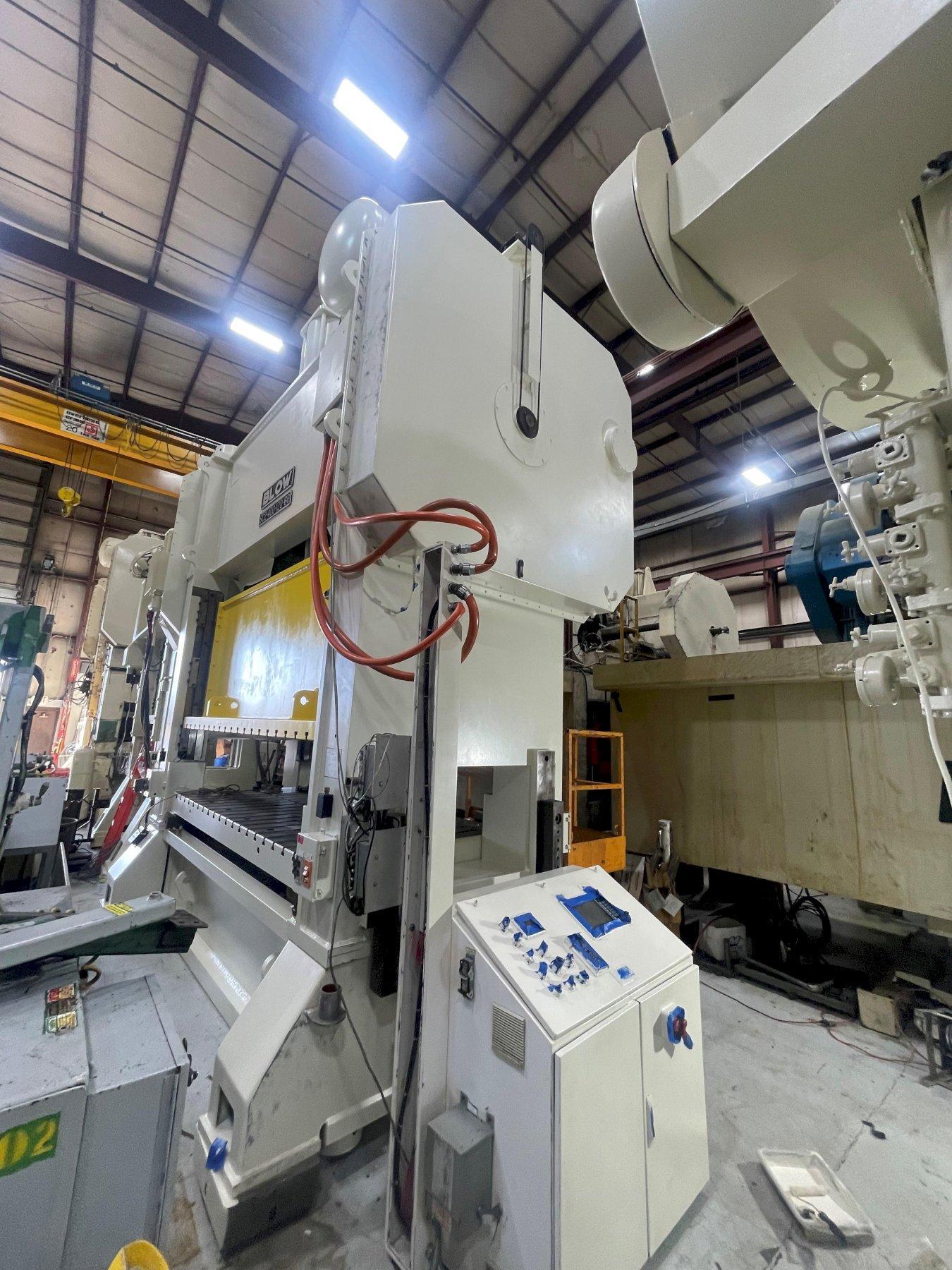

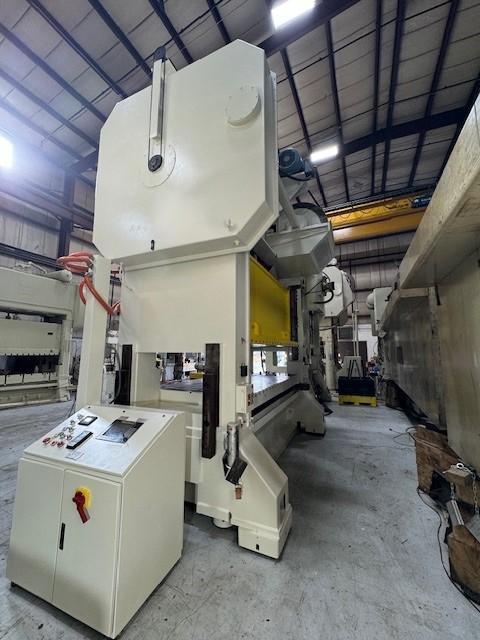

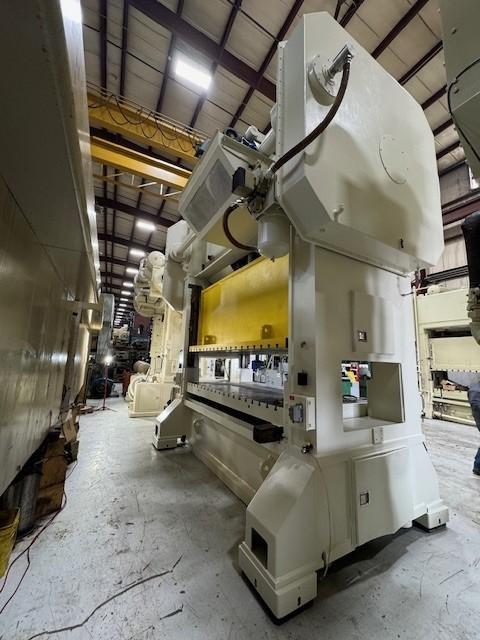

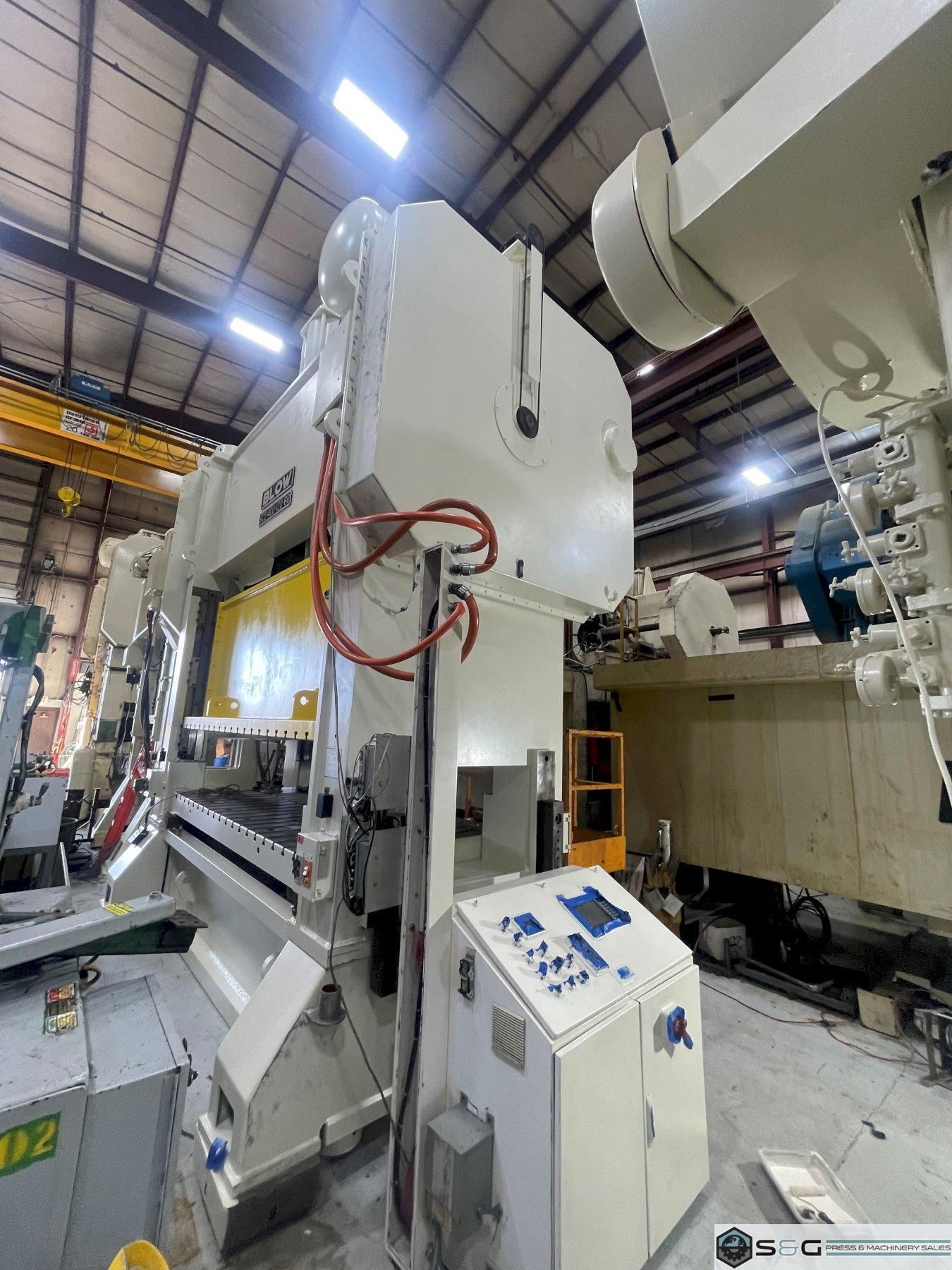

400-ton Blow Press #SC2-400-120-60 Straight Side Mechanical Metal Stamping Press For Sale, Year 2005

Brand

BLOW PRESSES

Model

SC2-400-120-60

Year

2005

Stock #

2871

Condition

Not specified

Specifications

Tonnage

400

Stroke

10 inches

Shut Height

35 inches

Adjustment

10 inches

Bed Size

120" LR x 60" FB

Ram Area

120" LR x 60" FB

SPM

20-60 VSPM

Standard Specifications

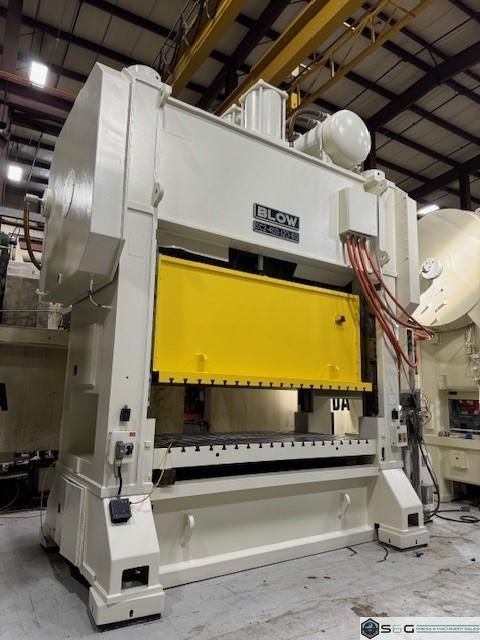

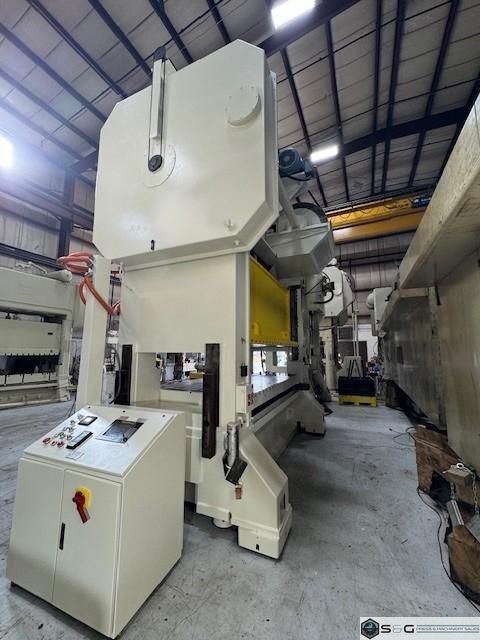

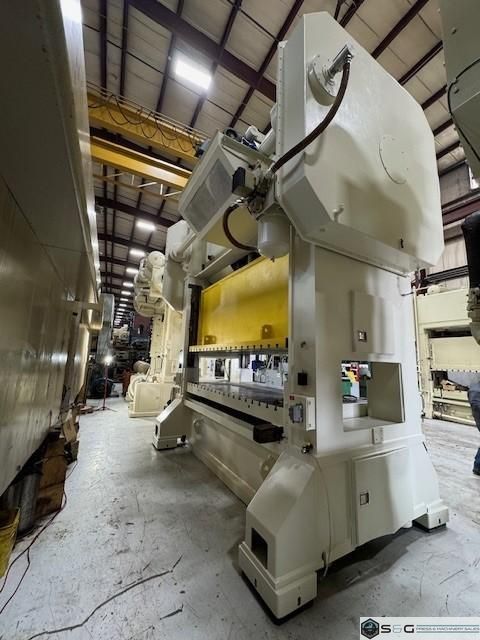

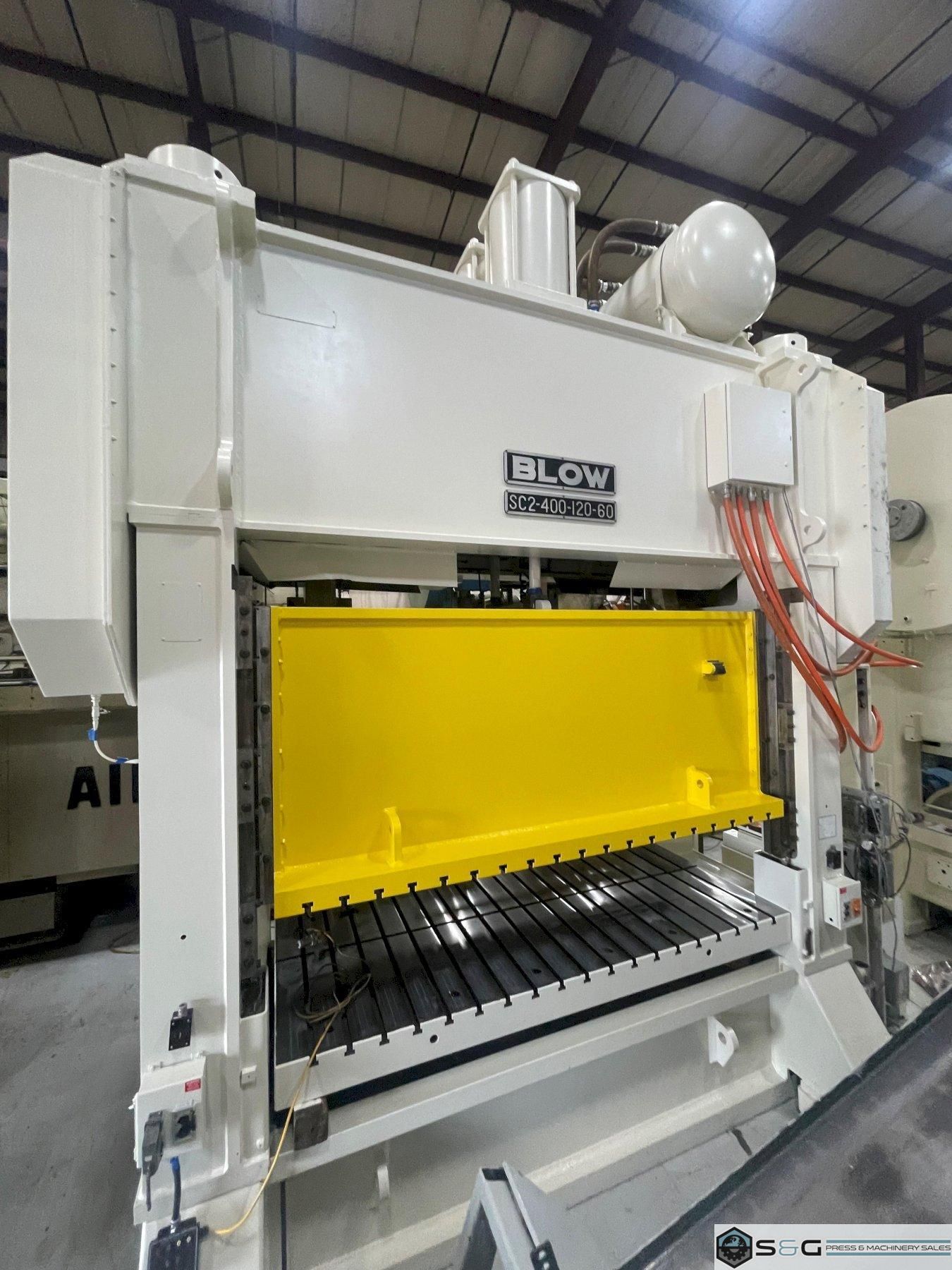

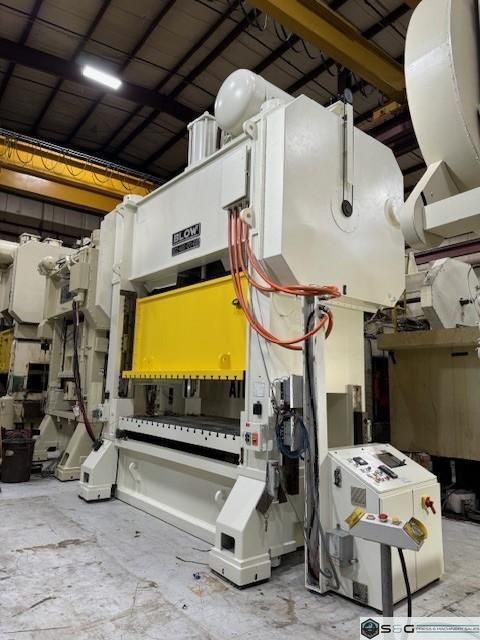

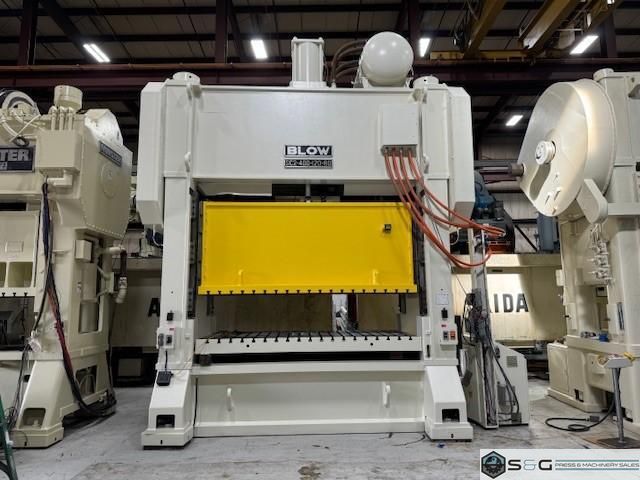

Used Blow Straight Side Mechanical Press
400-ton Blow Model # SC2-400-120-60
Serial Number SDG-400-588-05
400-ton Capacity @ .5" off Bottom
10" Stroke
35" Shut Height over Bed (SDAU)
28" Die Height over Bolster (SDAU)
10" Motorized Adjustment
120" LR x 60" FB Bed Area
120" LR x 60" FB Slide Area
20-60 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recircultaing Lube System
T-Slotted Ram and Bolster
7" Thick Bolster Plate
Hydraulic Tie Rod Nuts

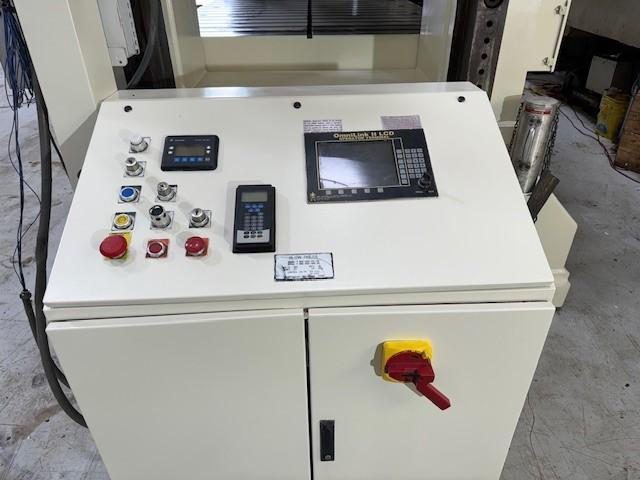

OmniLink II LCD Operator Terminal
Black Max Light Curtains (Front, Back Horizontal)

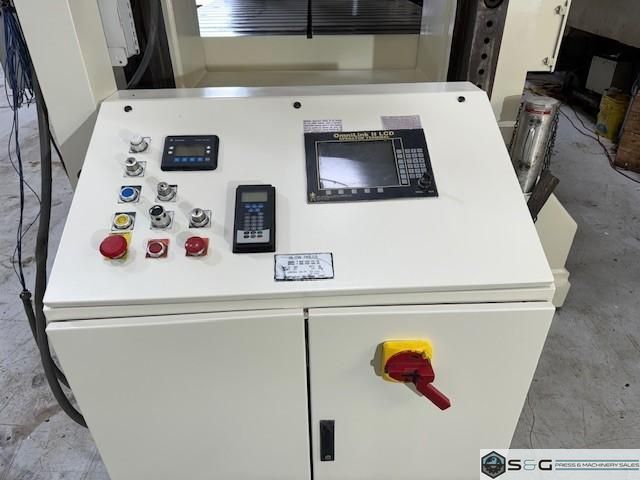

Free Standing Console Controls
38" Wide Windows
Vibro Dynamic Isolator Pads
Floor Standing

This Used 400-ton Blow Press can be seen under power upon request in the S & G Press Livonia MI Warehouse!

Used 400-ton Straight Side Mechanical Metal Stamping Press For Sale

Attachments

400-ton Blow 120 inch GA Drawing.pdf Download
