300 Ton BLISS Model SC2-300-60-48, Used Straight Side Mechanical Metal Stamping Press For Sale

Model

SC2-300-60-48 SSDC Press

Year

1971

Stock #

2747

Condition

Used

Specifications

Tonnage

300

Stroke

8 inches

Shut Height

42 inches

Adjustment

10 inches

Bed Size

60" LR x 48" FB

Ram Area

60" LR x 48" FB

SPM

30-60 VSPM

Standard Specifications
Used Bliss Press Model SC2-300-60-48
Straight Side Mechanical Metal Stamping Press
300 ton Capacity
8" Stroke
10" Adjustment
42" Shut Height Over Bed SDAU
60" LR x 48" FB Bed Area
60" LR x 48" FB Slide Area
30-60 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
8 Point Gibbing
Motorized Adjustment
DC Variable Speed Drive and Motor
T-Slotted Ram and Bolster
8" Thick Bolster Plate
Wintriss Autoset 1500 Tonnage Monitor
Wintriss Shadow V Light curtains
Ametek Rotary Cam Limit Switch
Gemco 2500 Series PLS
35" Wide Windows
Hydraulic Tie Rod Nuts
Palm Buttons

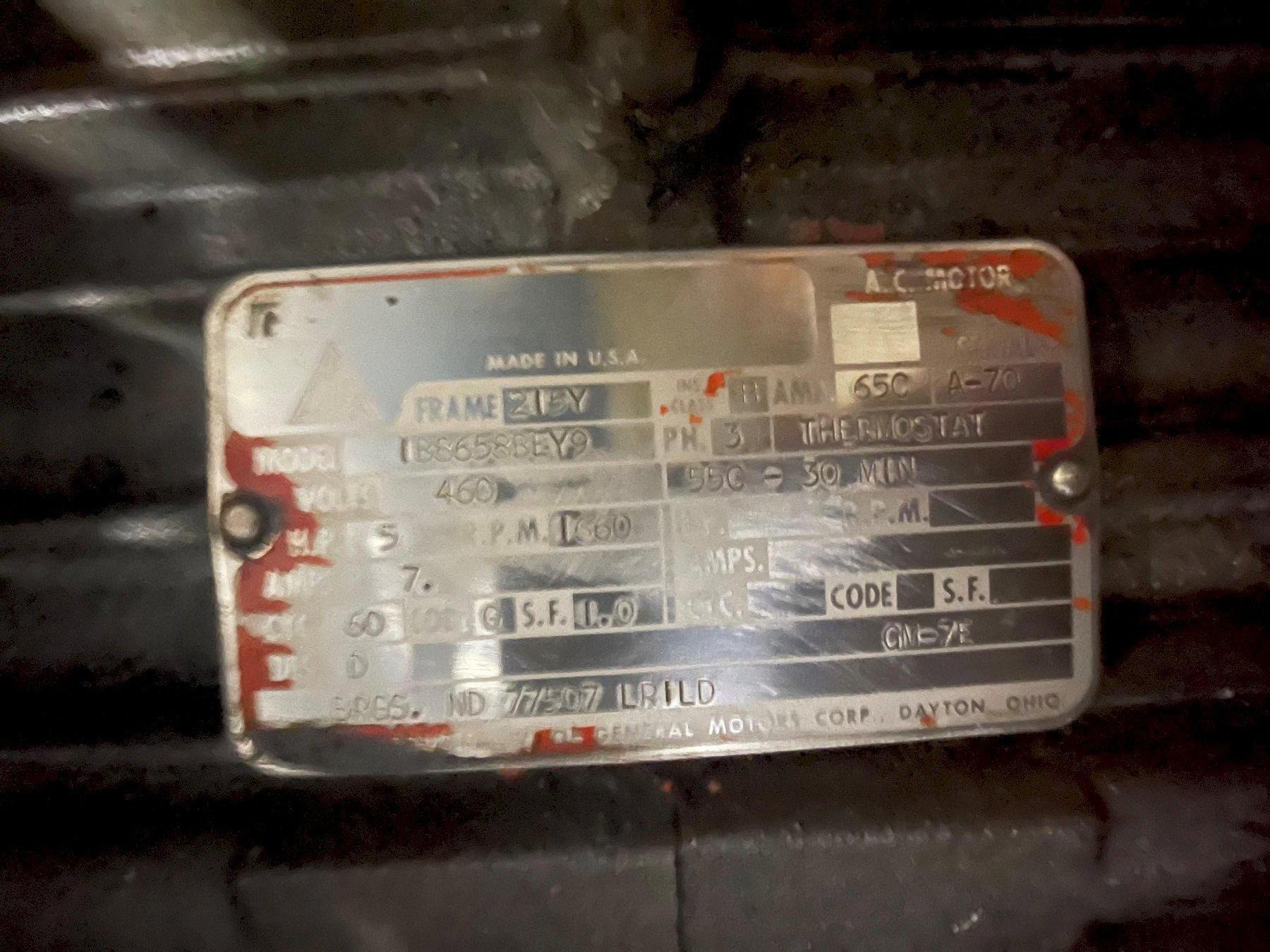

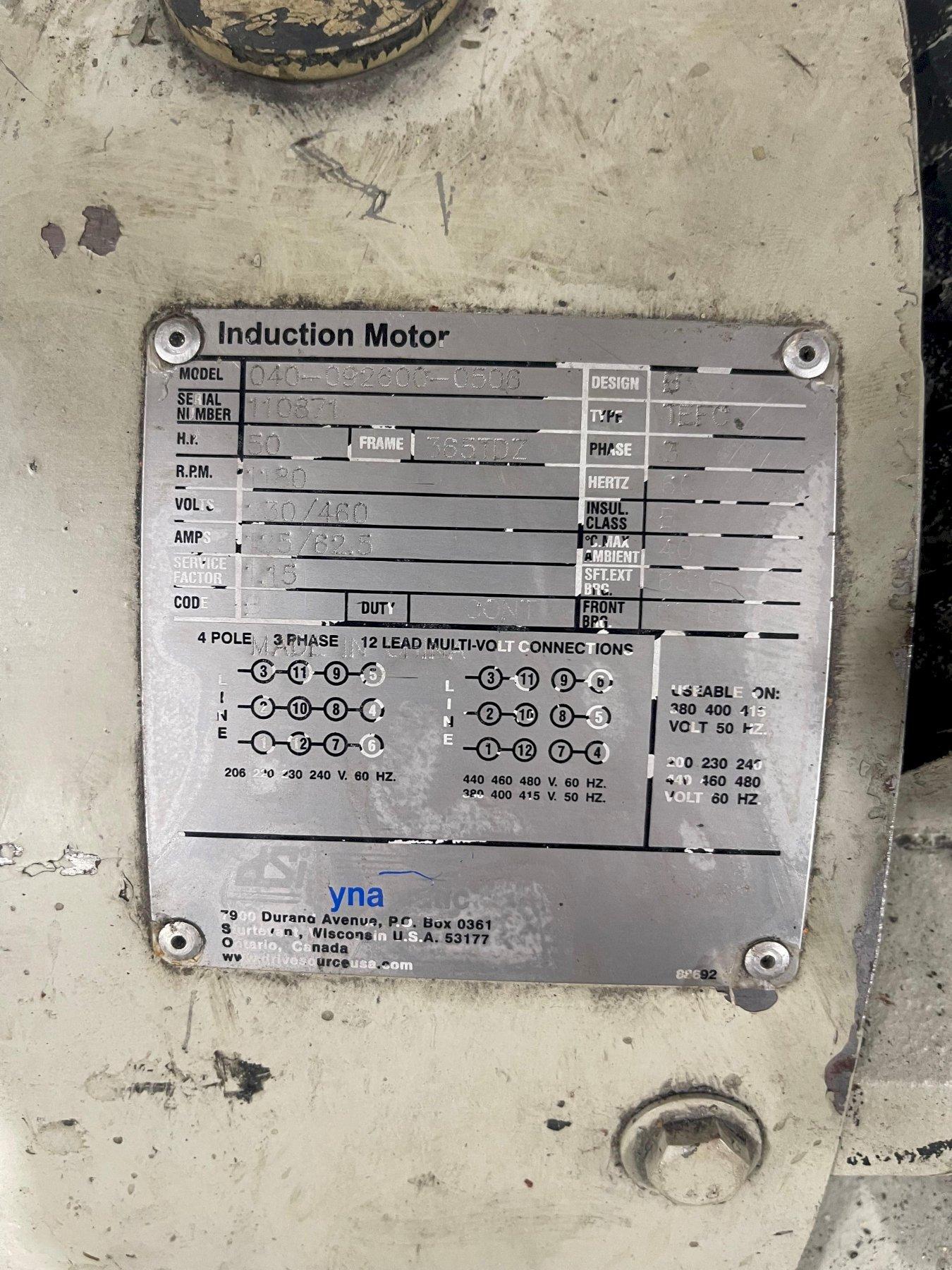

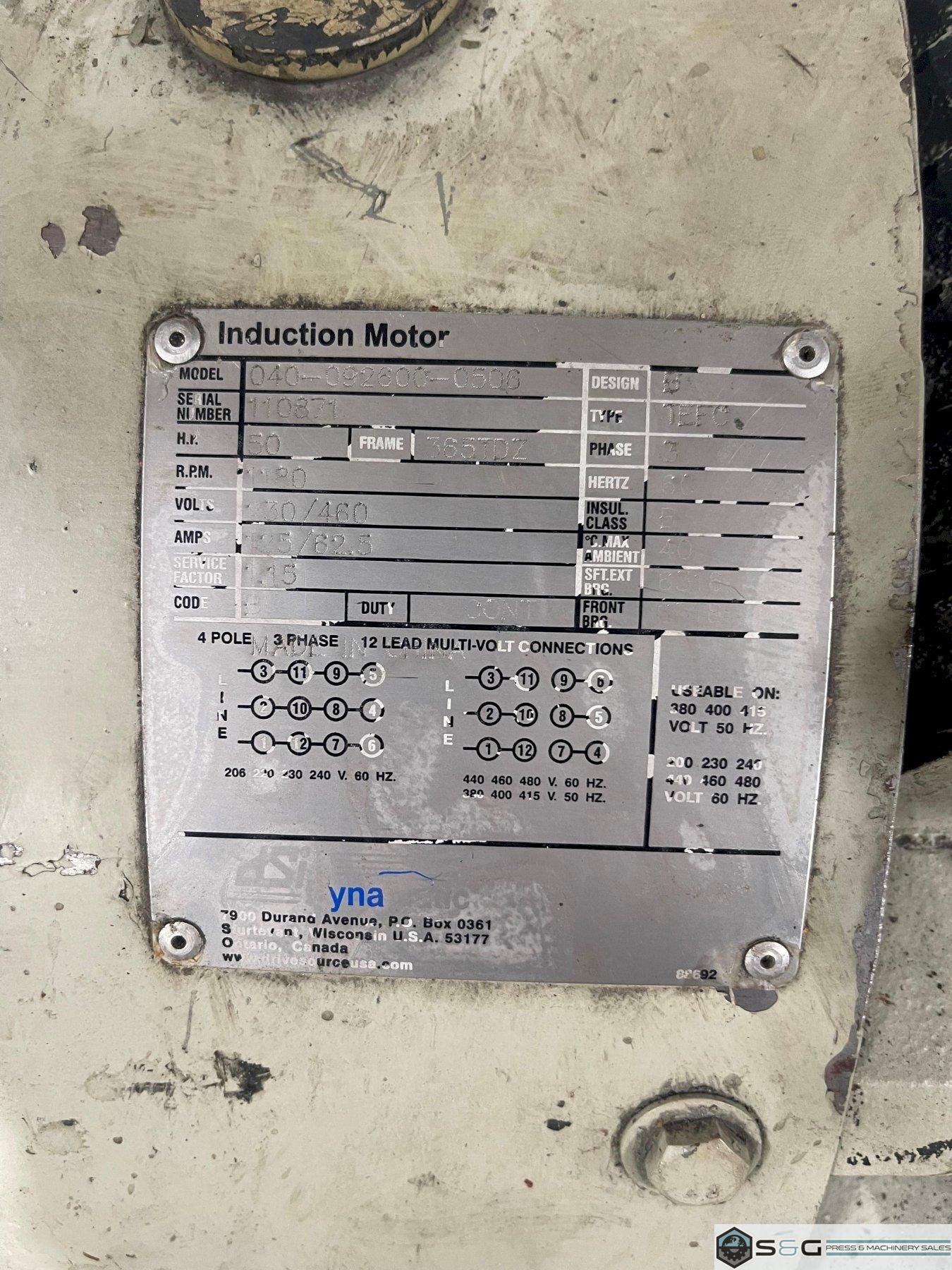

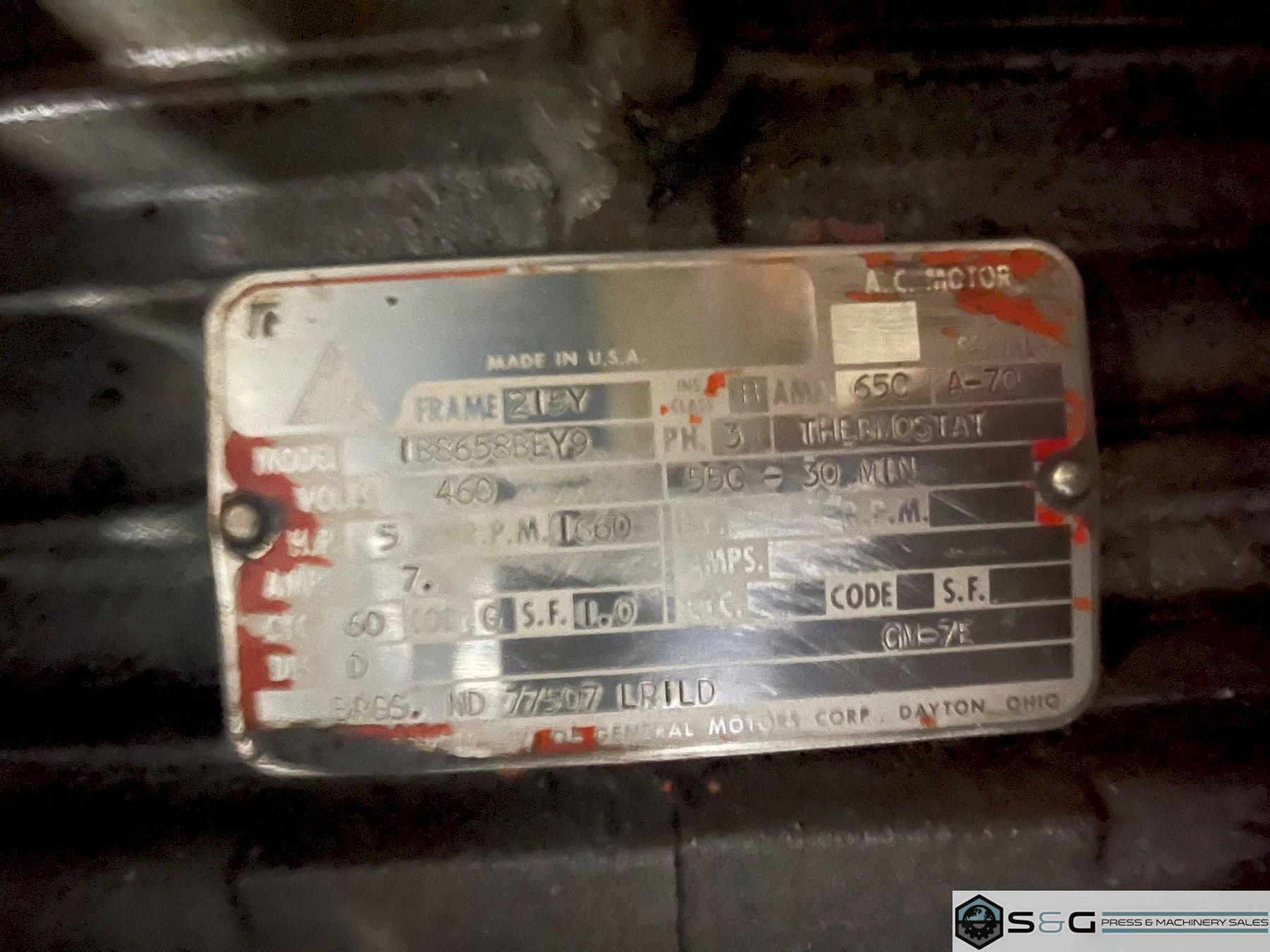

Motors and Controls

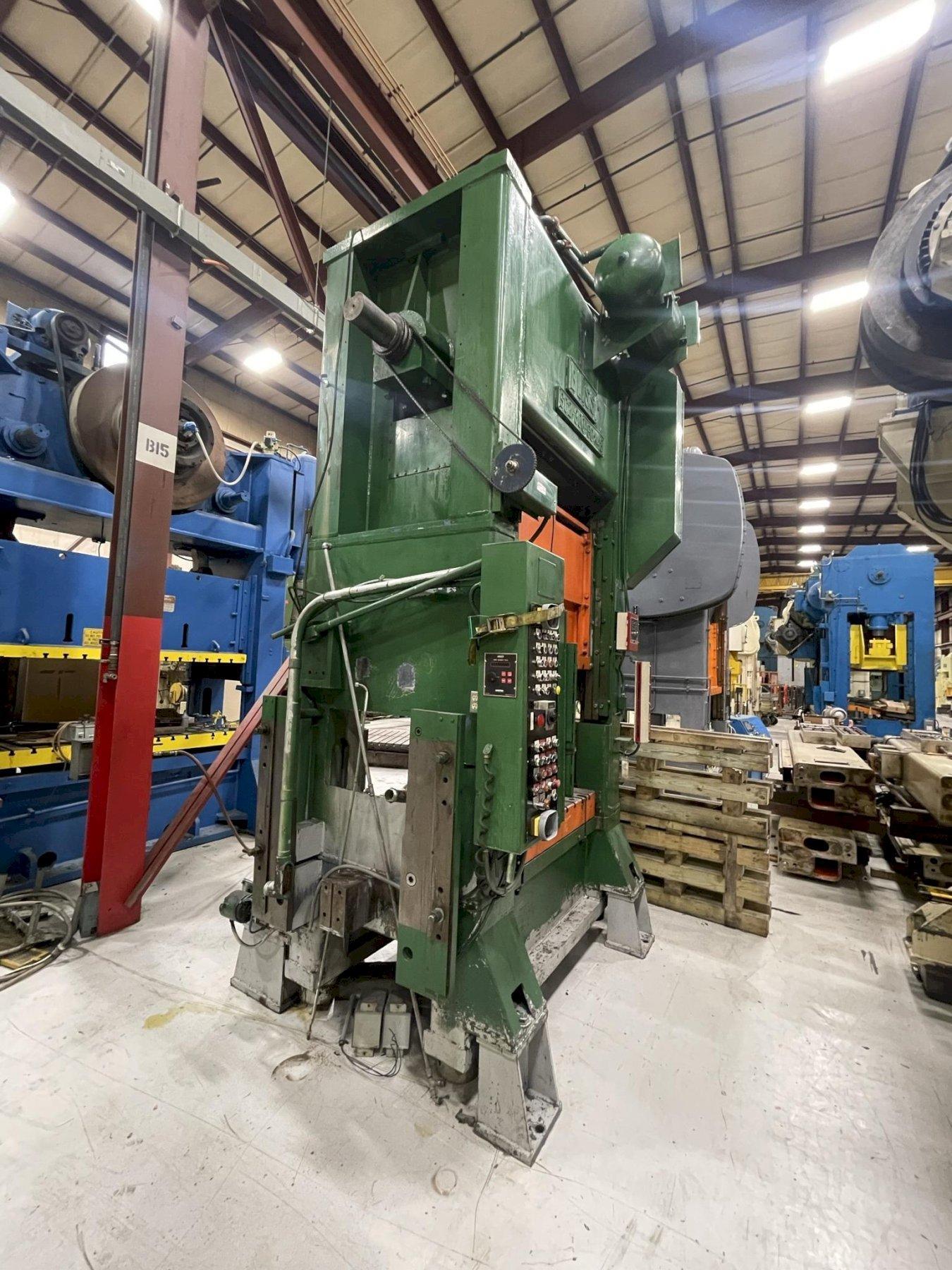

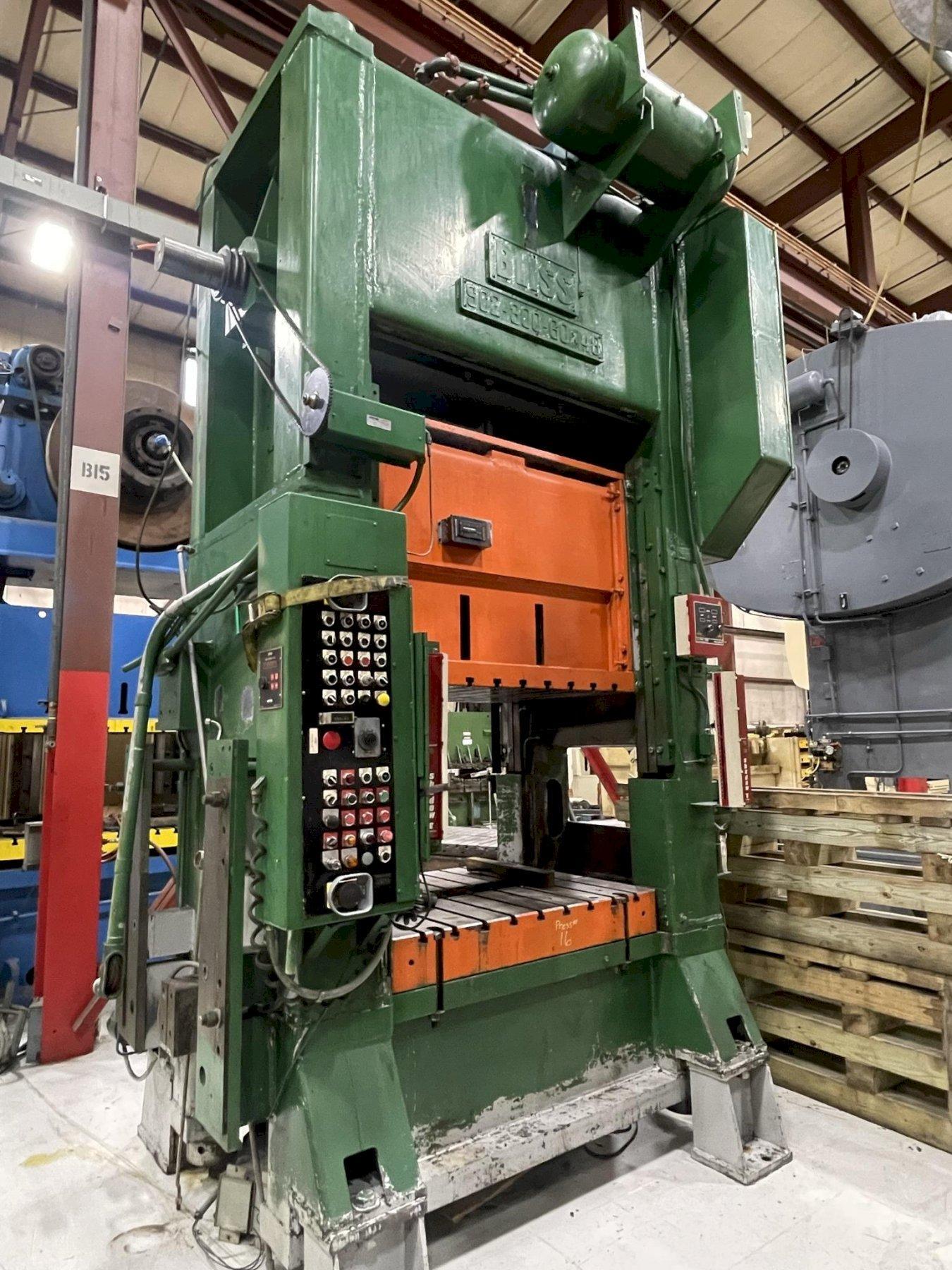

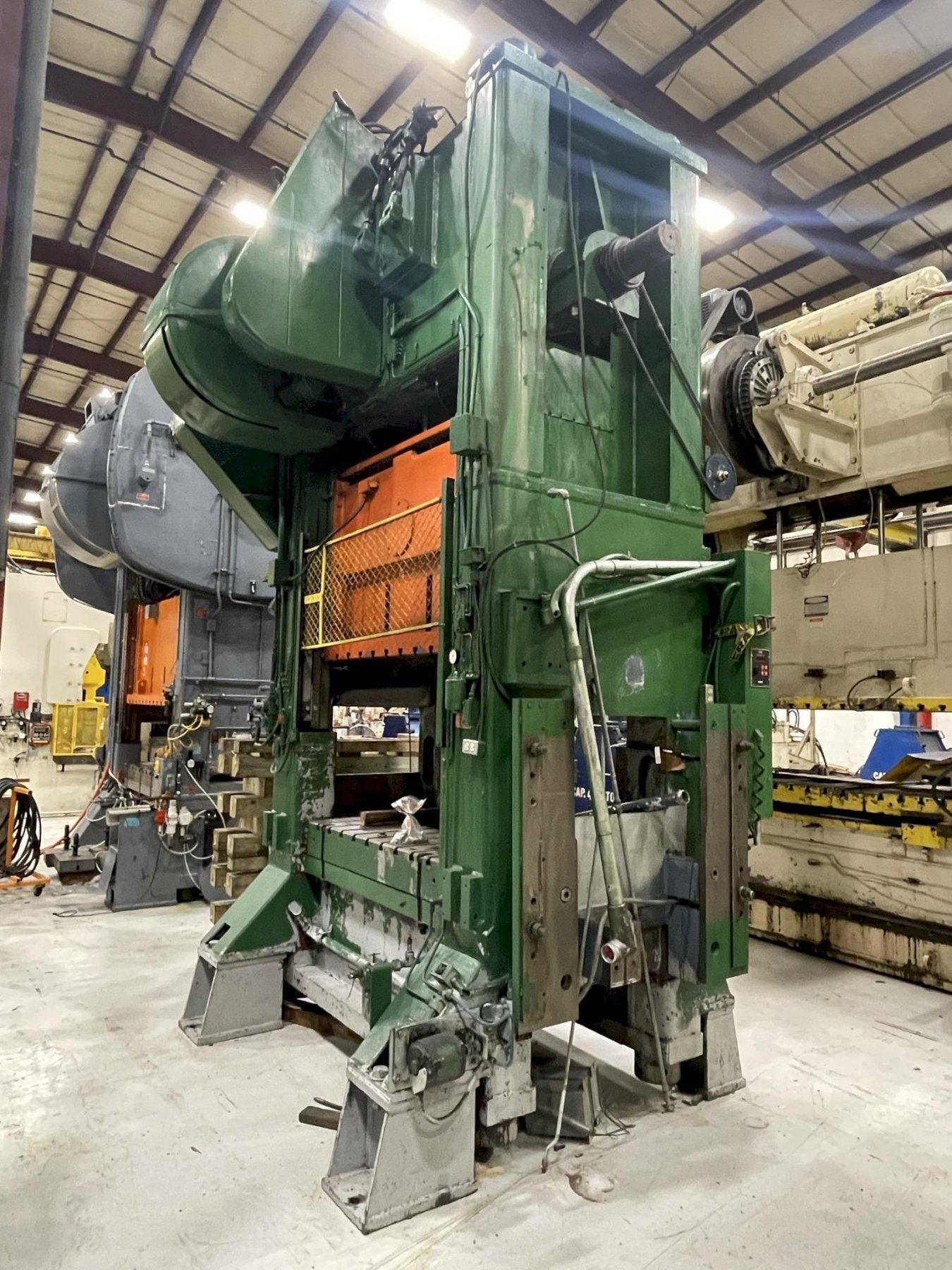

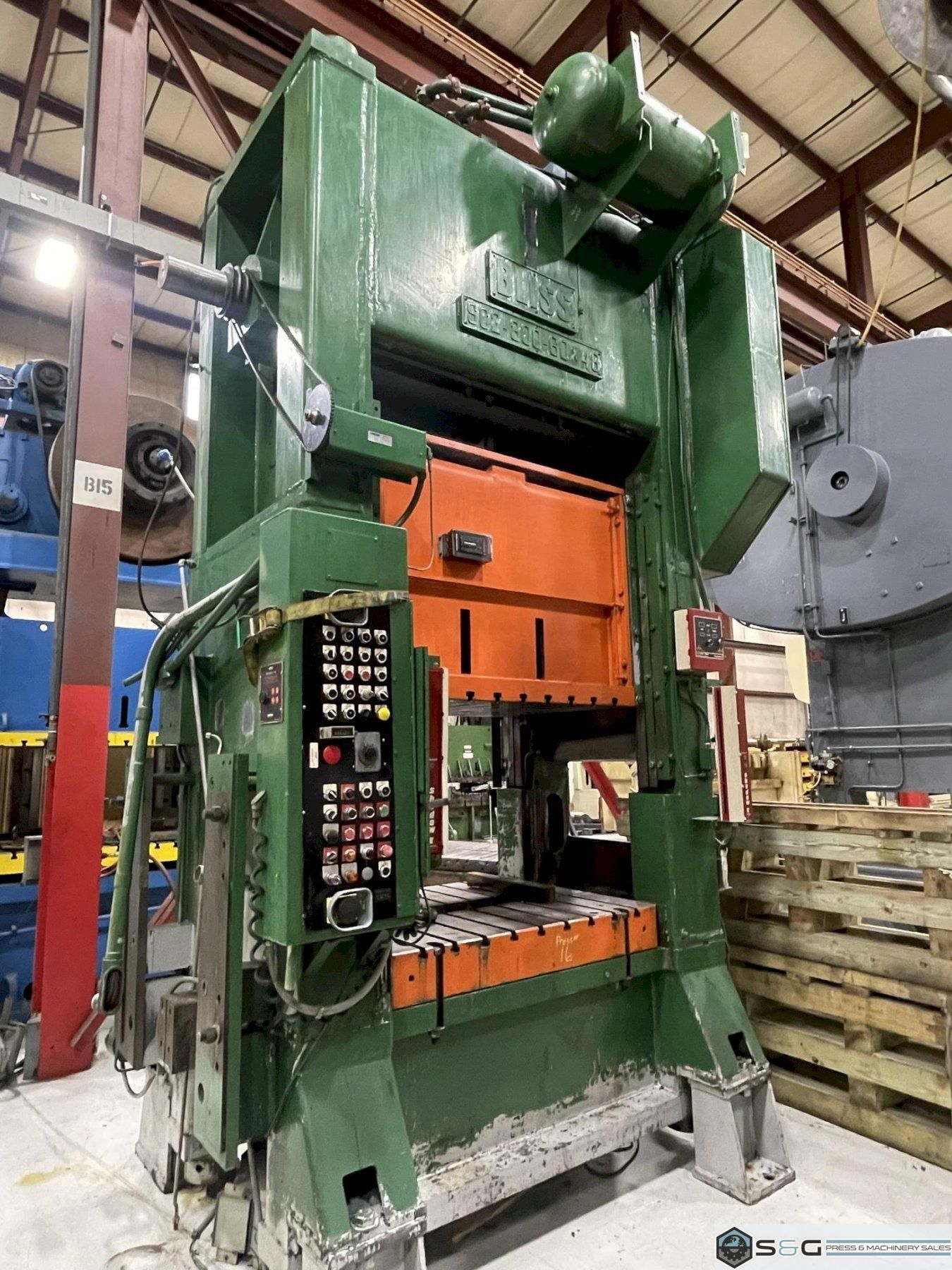

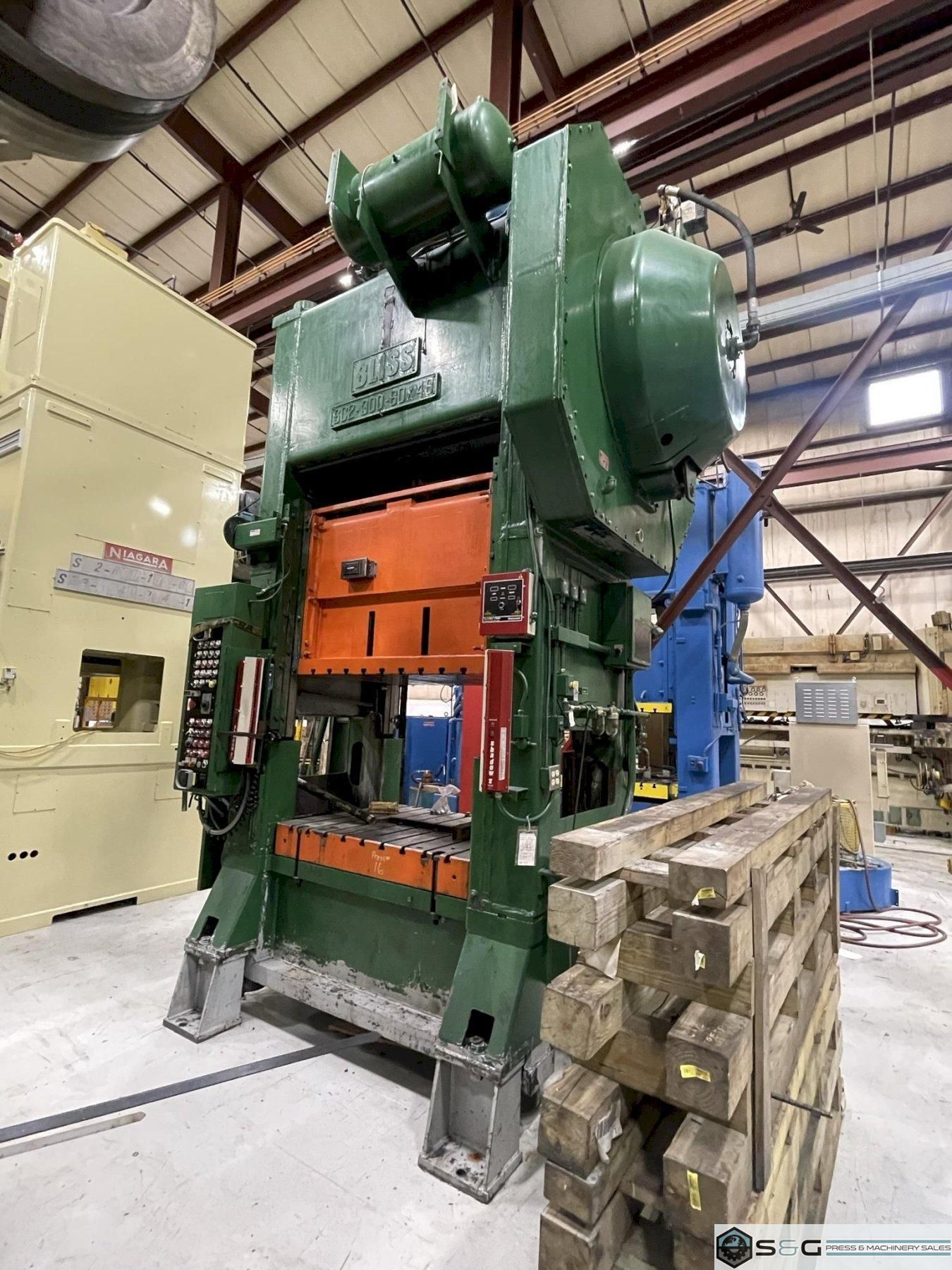

This used 300-ton Bliss Straight Side Mechanical Metal Stamping Press can be seen under power in the S&G Press Livonia Michigan Warehouse!

Used 300 ton Bliss Straight Side Press For Sale

Attachments

300 ton Bliss SC2-300-60-48 SG Stock 2747 General Assembly Drawing.pdf Download
