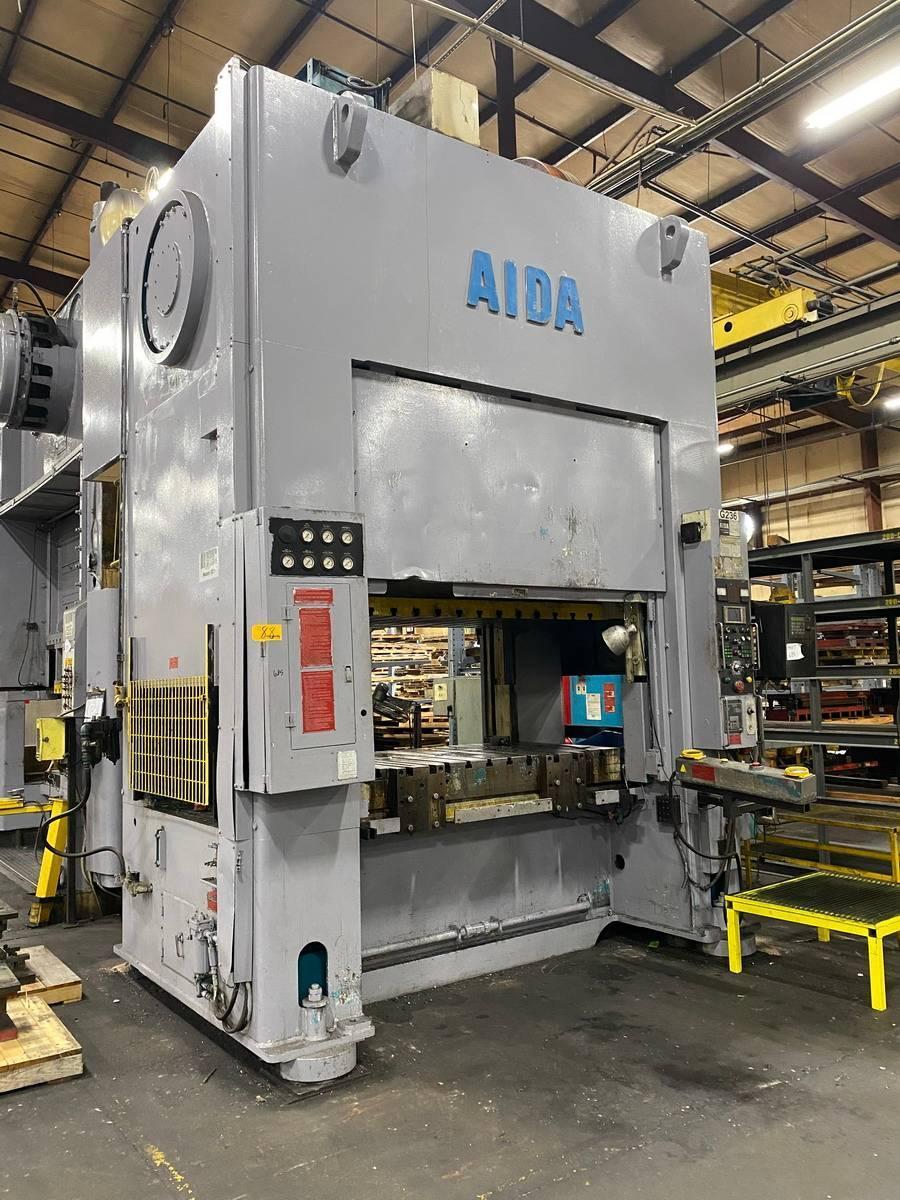

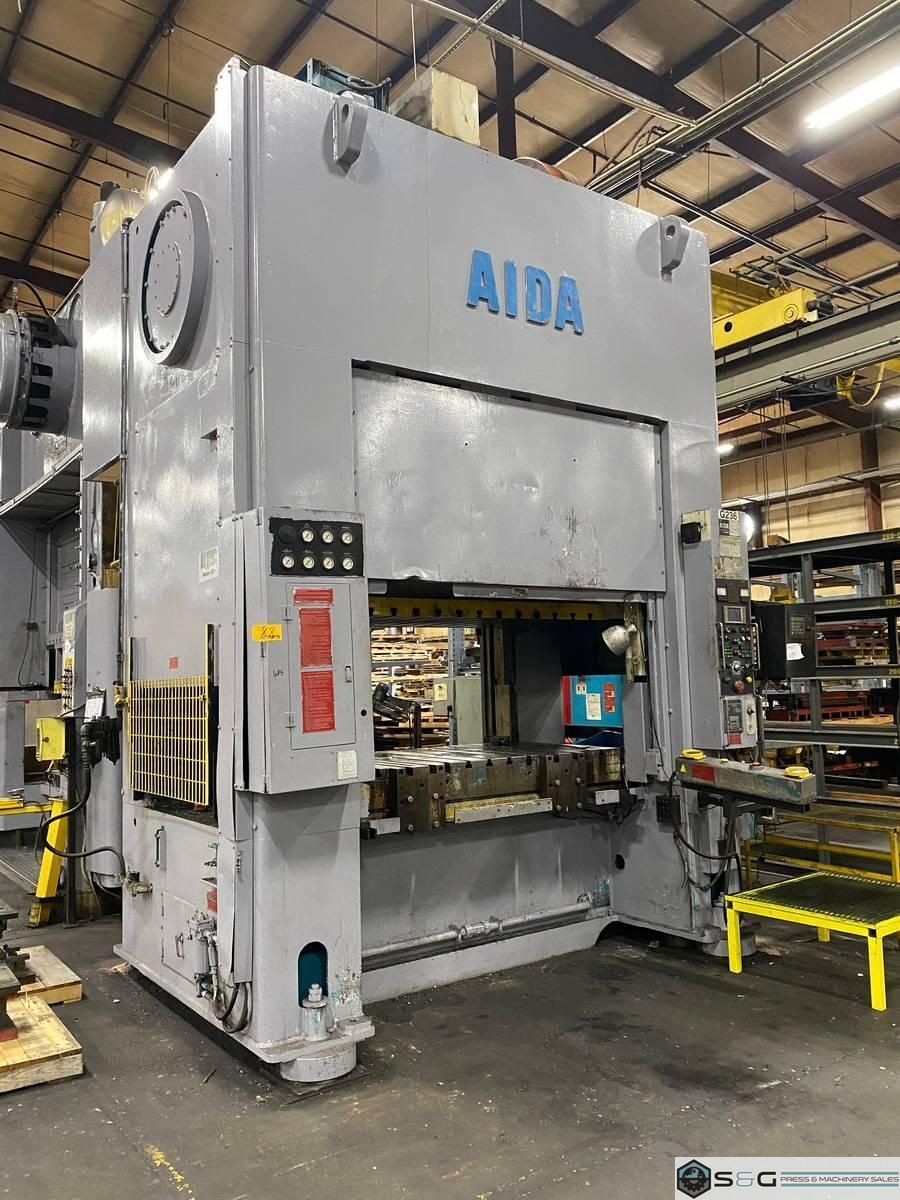

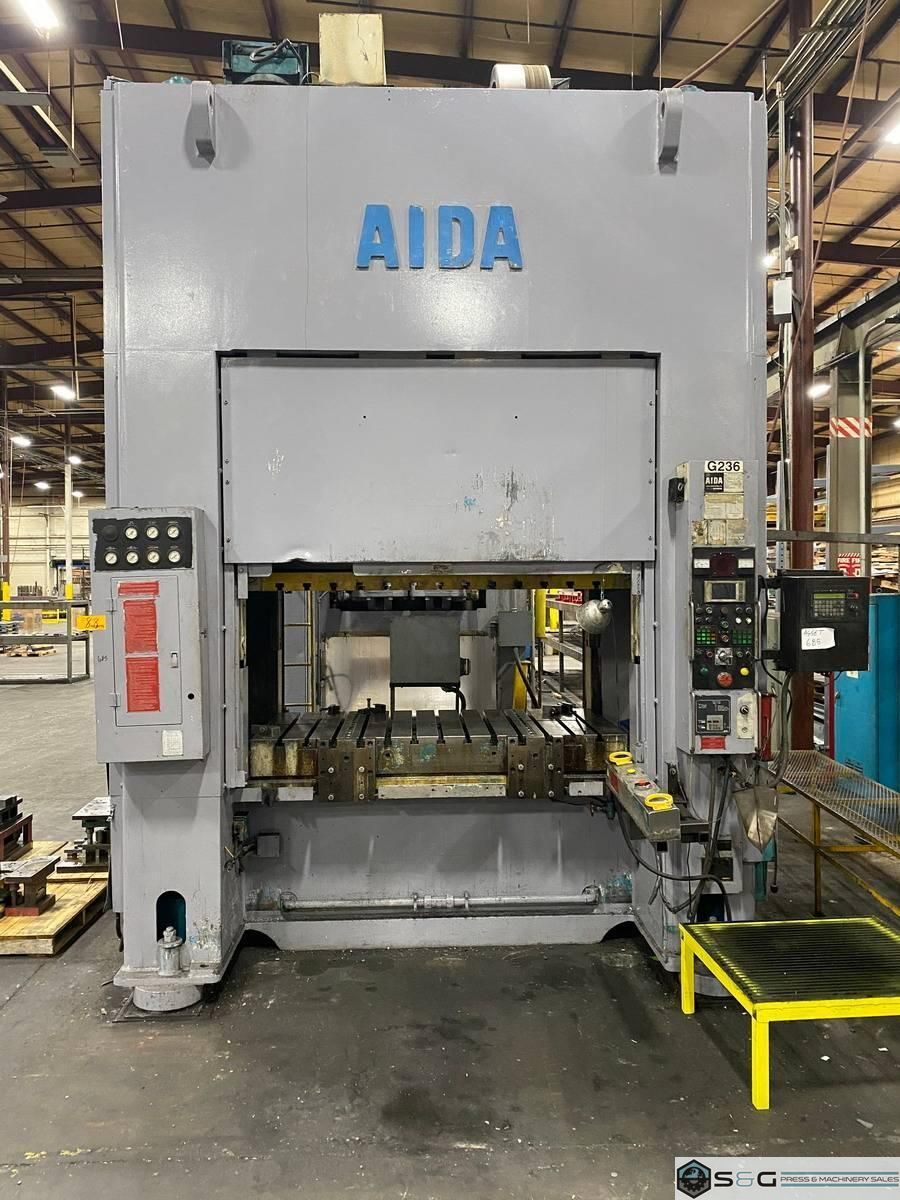

330 ton Aida SMX-II-S2-300 (1)Straight Side Press New 1994

Brand

AIDA

Model

SMX-II-S2-300 (1)

Year

1993

Stock #

2636

Condition

Very Good

Request a Quote

Specifications

Tonnage

330

Stroke

11.81 inches

Shut Height

29.63 inches

Adjustment

3.93 inches

Bed Size

84" x 39.3"

Ram Area

84" x 43.3"

SPM

25-55 VSPM

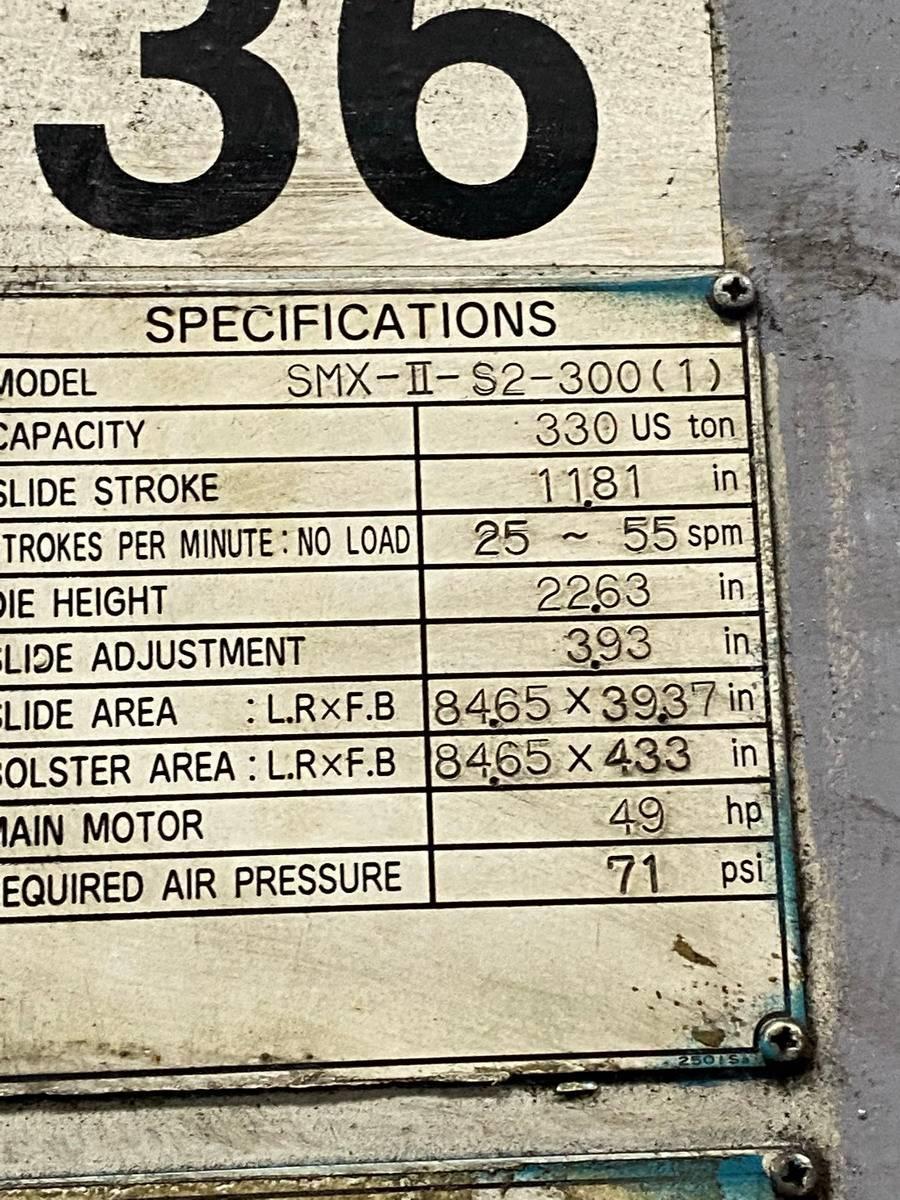

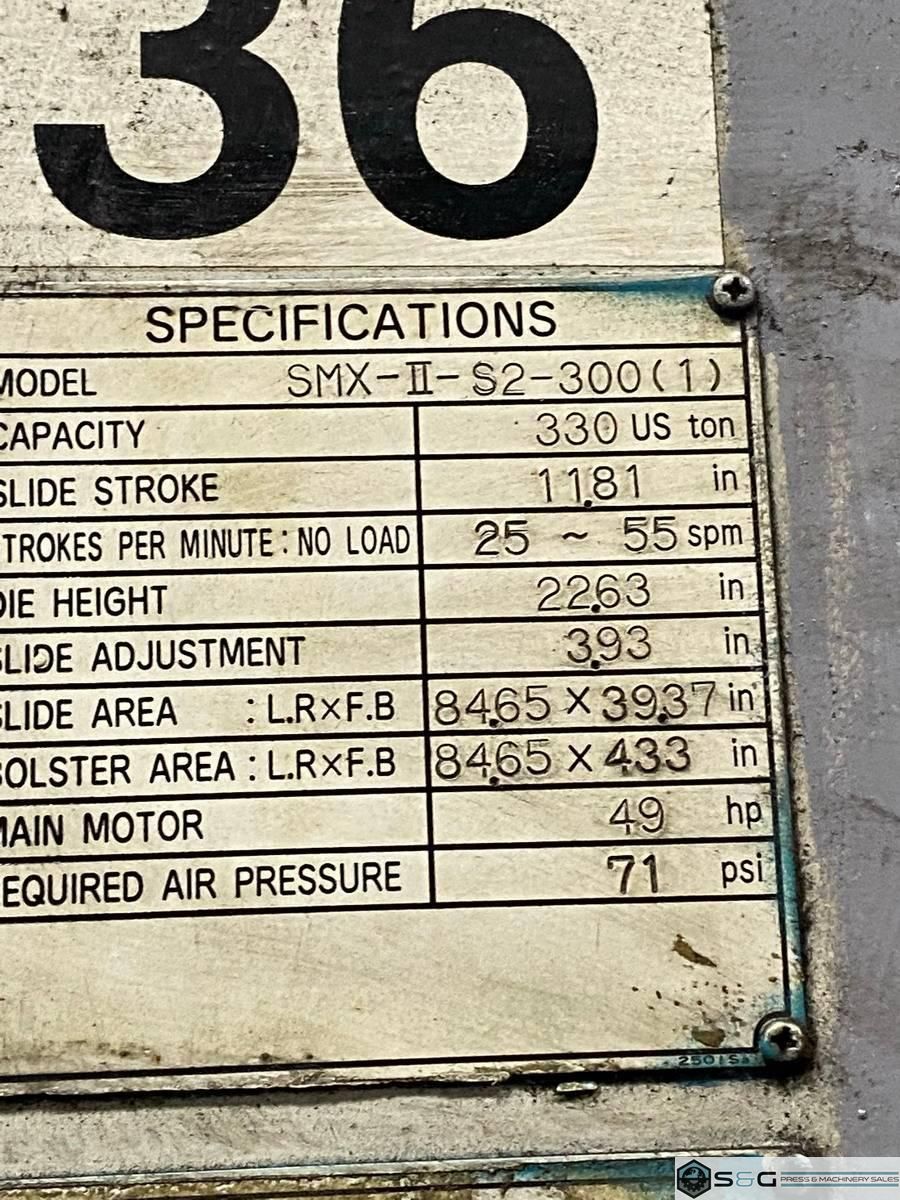

Standard Specifications
330 ton Capacity
300 ton Metric Capacity
11.81" Stroke
22.63" Die Height Over Bolster
30.83" Shut Height Over Bed
3.93" Motorized Adjustment
84.65" LR x  39.37" FB Slide Adjustment
84.65" LR x 43.3" FB Bed Area
25-55 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System

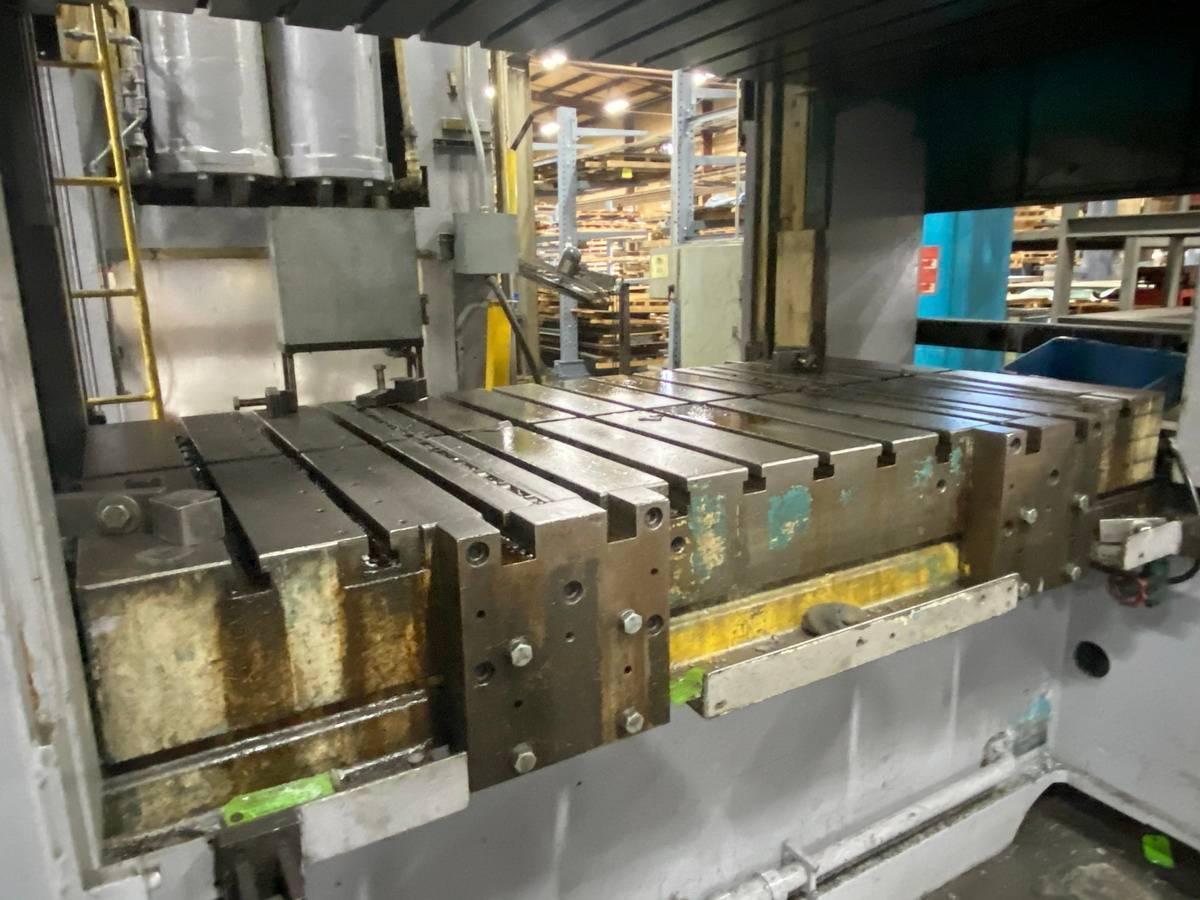

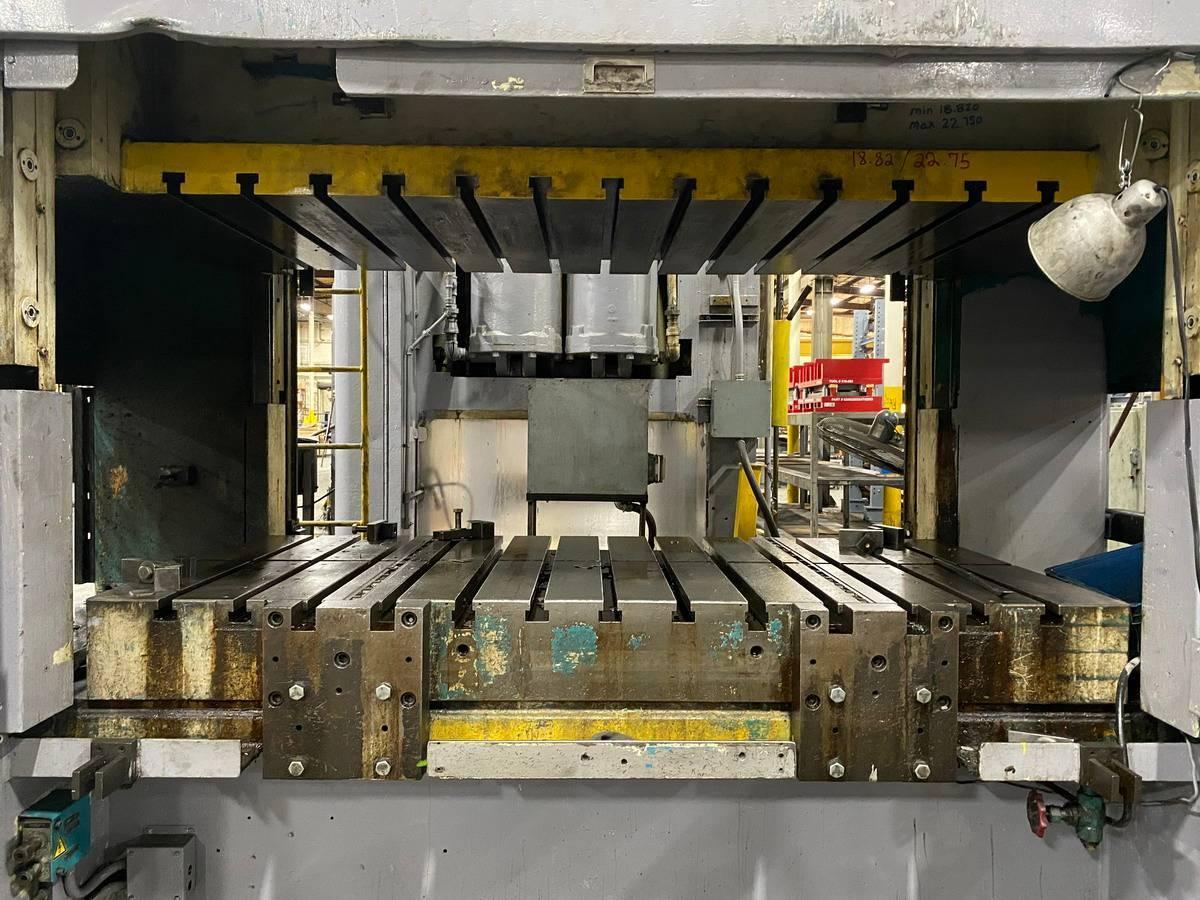

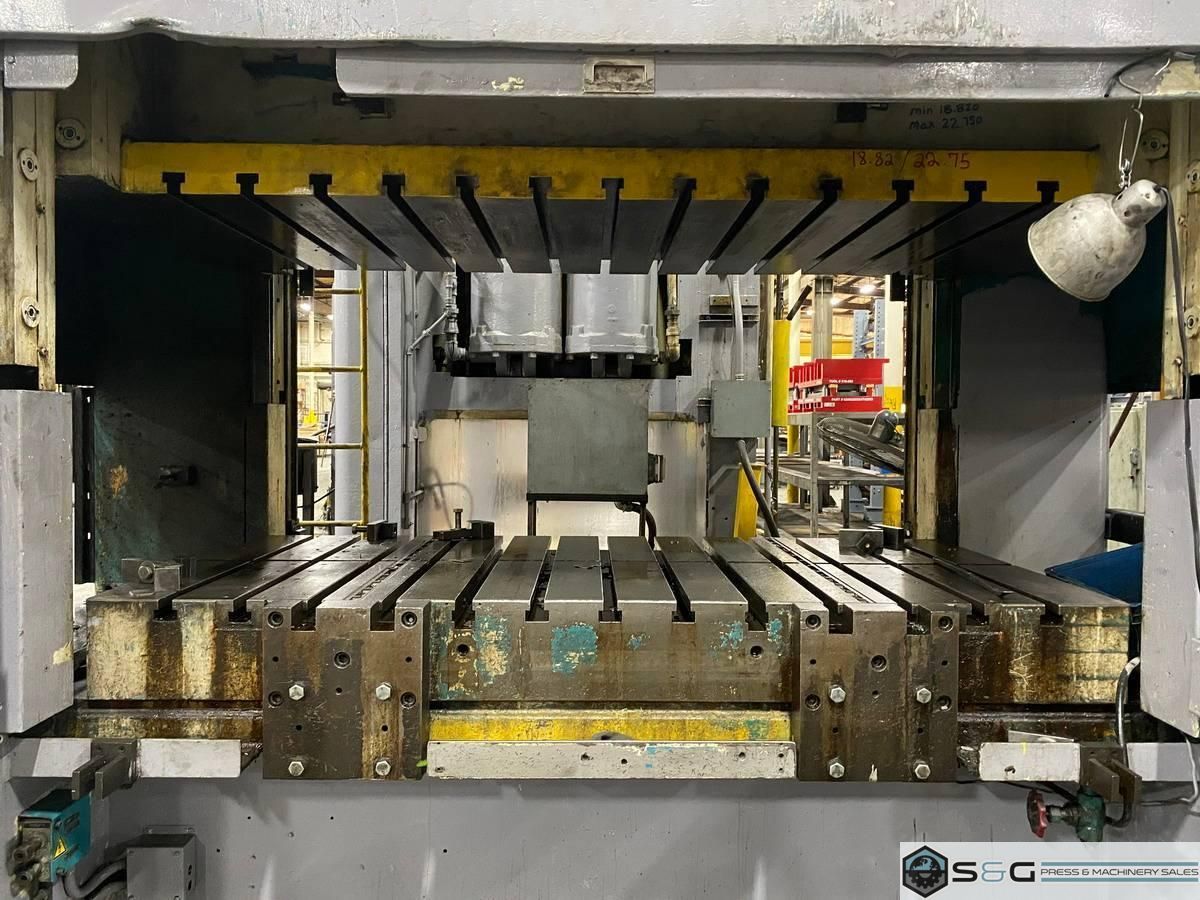

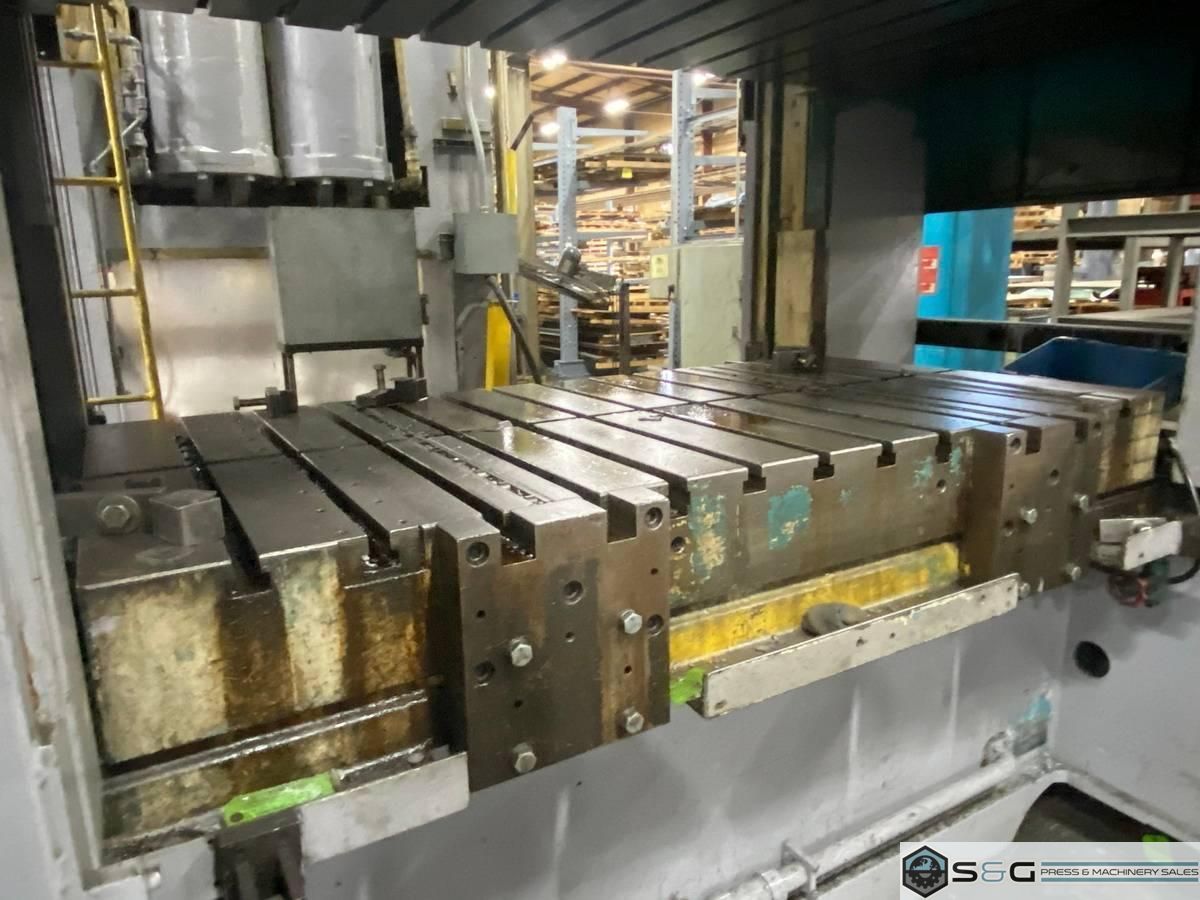

T-Slotted Ram and Bolster
8.2" Thick Bolster Plate
Crank Motion 2 Point Press
45" Wide Windows
Floor Standing

Floor Level to top of bolster: 49.6"
Overall Weight 105,000 lbs.

Attachments

2636.pdf Download
